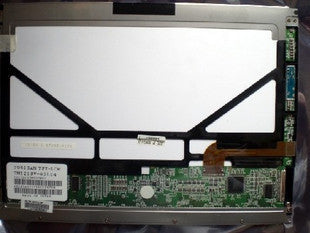

TM121SV-02L07 12.1" LCD Screen Display Panel 800*600

Panel brand: Sanyo
Panel model: TM121SV-02L07
Panel type: a-Si TFT-LCD
Panel size: 12.1"(inches)
Resolution: 800x600
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 120 cd/㎡(Typ.)
Contrast: 250:1 (Typ.)
Display color: 262K (6-bit)
Response Time: 30/20 (Max.)(Tr/Td)  (ms)
Visual Angle: 45/45/10/30 (Typ.) (CR ≧ 10) (L/R/U/D)
Scanning Frequency: 60Hz
Lamp Type: 1pc CCFL
Signal Connector: LVDS (1 ch, 6-bit)
Panel voltage: 3.3V (Typ.)(VDD)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
