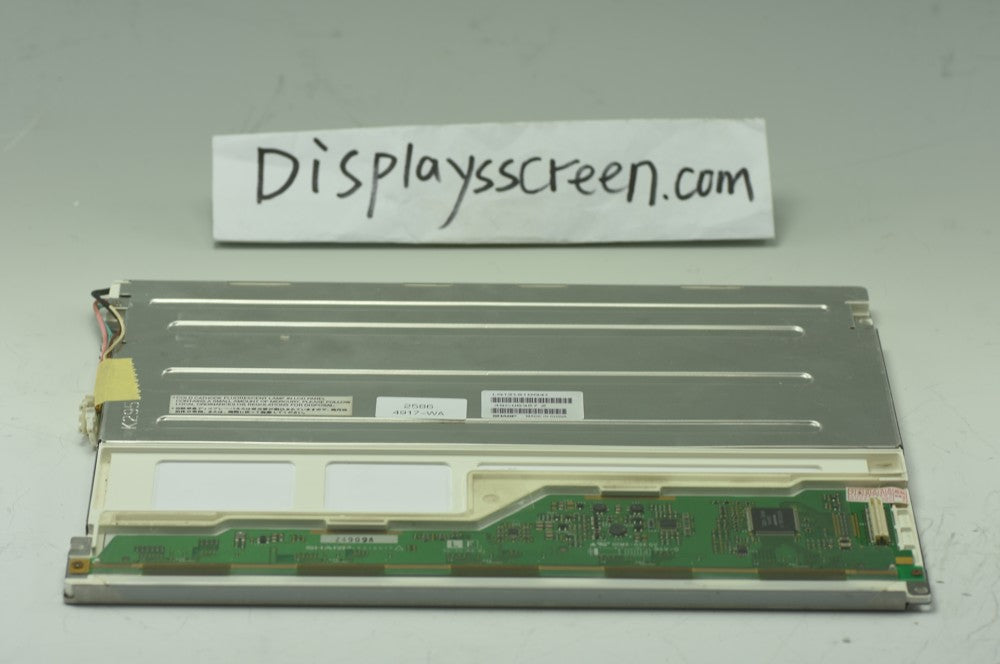

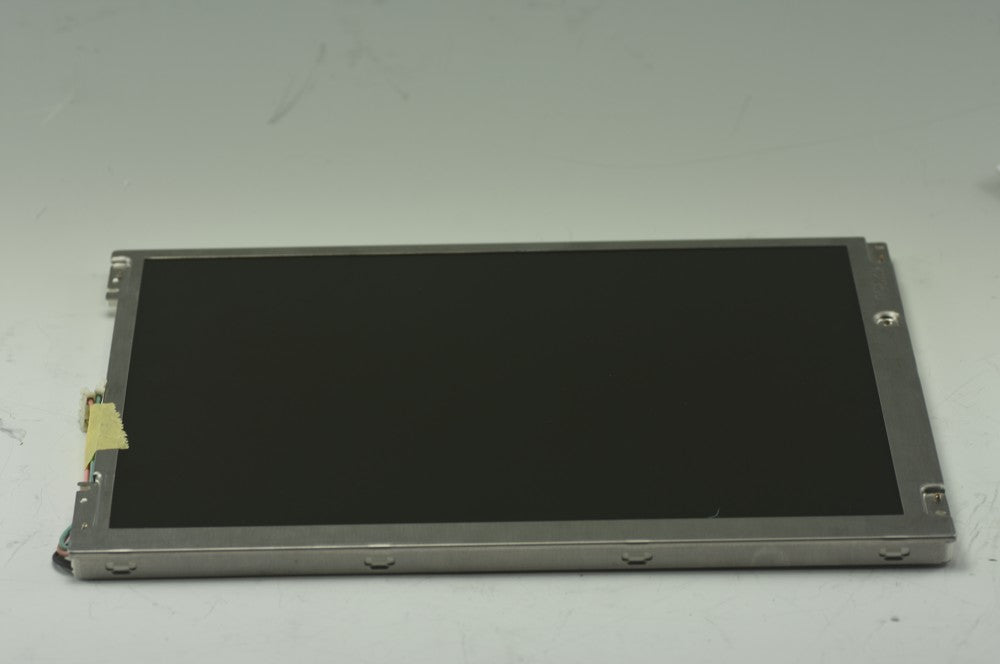

Original LQ121S1DG41 12.1 inch TFT LCD Screen Panel 800*600
Sale price
$75.99
Regular price $127.99
Skip to product information
Panel Brand: Sharp

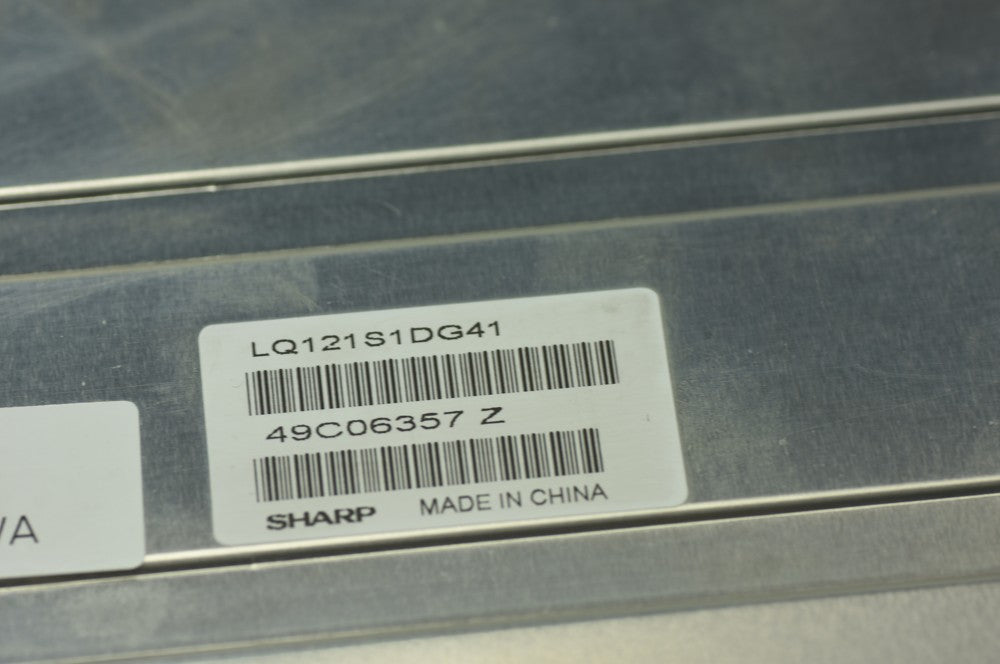

Panel Model: LQ121S1DG41
Panel Type: a-si TFT-LCD,panel
Panel Size: 12.1 inch
Resolution: 800(RGB)x600,SVGA
Display Mode: TN,Normally white,transmissive
Brightness: 370 cd/m2 (Typ.)
Contrast Ratio: 450:1(Typ)
Display Colors: 262K (6-bit)
Response Rime: 10/25(Typ.)(Tr/Td)
Viewing Angle: 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)

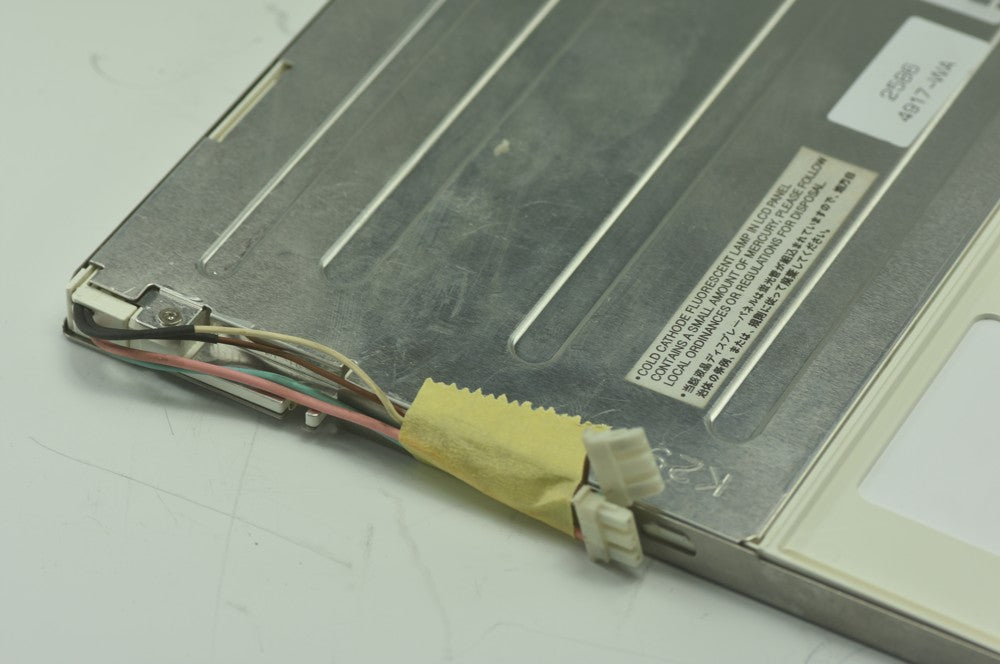

Lamp Type: 2 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/5.0V (Typ.)(VCC)
Appllication: Industrial control display device.
Original LQ121S1DG41 12.1 inch TFT LCD Screen Panel 800*600
Sale price
$75.99
Regular price $127.99
Panel Model: LQ121S1DG41
Panel Type: a-si TFT-LCD,panel
Panel Size: 12.1 inch
Resolution: 800(RGB)x600,SVGA
Display Mode: TN,Normally white,transmissive
Brightness: 370 cd/m2 (Typ.)
Contrast Ratio: 450:1(Typ)
Display Colors: 262K (6-bit)
Response Rime: 10/25(Typ.)(Tr/Td)
Viewing Angle: 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type: 2 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/5.0V (Typ.)(VCC)
Appllication: Industrial control display device.
