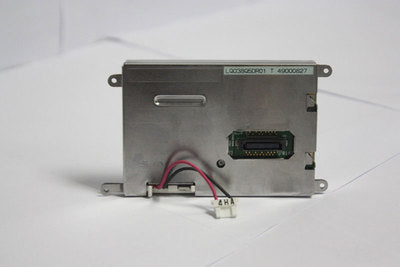

Original LQ038Q5DR01 SHAPP Screen 3.8" 320×240 LQ038Q5DR01 Display
$105.00
Skip to product information
Original LQ038Q5DR01 SHAPP Screen 3.8" 320×240 LQ038Q5DR01 Display
$105.00
Panel Brand:SHARP
Panel Model:LQ038Q5DR01
Panel Type:a-Si TFT-LCDPanel
Panel Size:3.8"
Resolution;320(RGB)×240 (QVGA)
Display Mode:TN, Normally White, Transmissive
Surface:Antiglare, Antireflection
Brightness:450 cd/m2 (Typ.)
Contrast Ratio:100 : 1 (Min.) (Transmissive)
Display Colors:262K (6-bit)
Response Rime:30/50 (Typ.)(Tr/Td) (ms)
Viewing Angle:65/65/40/65 (Typ.)(CR?5) (L/R/U/D)
Frequency:60Hz
Lamp Type:CCFL
Signal Interface:Parallel RGB (1 ch, 6-bit)
Input Voltage:3.3V (Typ.)(VCC)
