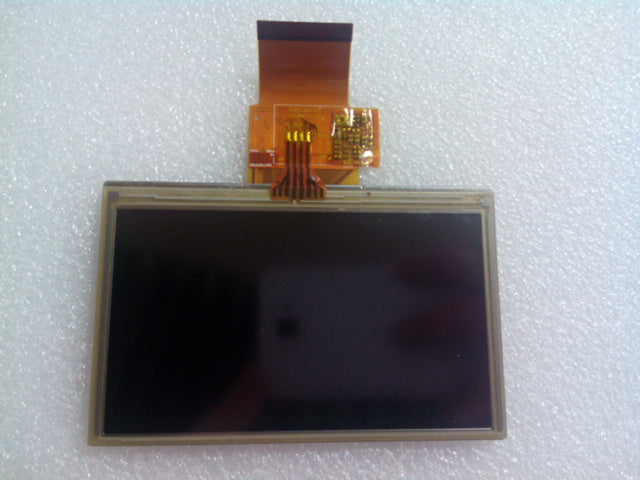

Original A043FL01 V2 AUO Screen 4.3" 480×272 A043FL01 V2 Display
$65.00
Skip to product information
Original A043FL01 V2 AUO Screen 4.3" 480×272 A043FL01 V2 Display
$65.00
Panel Brand:AUO
Panel Model:A043FL01 V2
Panel Type:LTPS TFT-LCDPanel
Panel Size:4.3"
Resolution:480(RGB)×272 (WQVGA)
Display Mode:TN, Normally White, Transmissive
Surface:Hard coating (3H)
Brightness:400 cd/m2 (Typ.)
Contrast Ratio:300 : 1 (Typ.) (Transmissive)
Display Colors:16.7M (8-bit)
Response Rime:15/20 (Typ.)(Tr/Td) (ms)
Viewing Angle:60/60/40/55 (Typ.)(CR?10) (L/R/U/D)
Frequency:60Hz
Lamp Type:WLED
Signal Interface:Parallel RGB (1 ch, 8-bit) + SPI
Input Voltage:3.0/3.6V (VDD)(Min./Max.)
