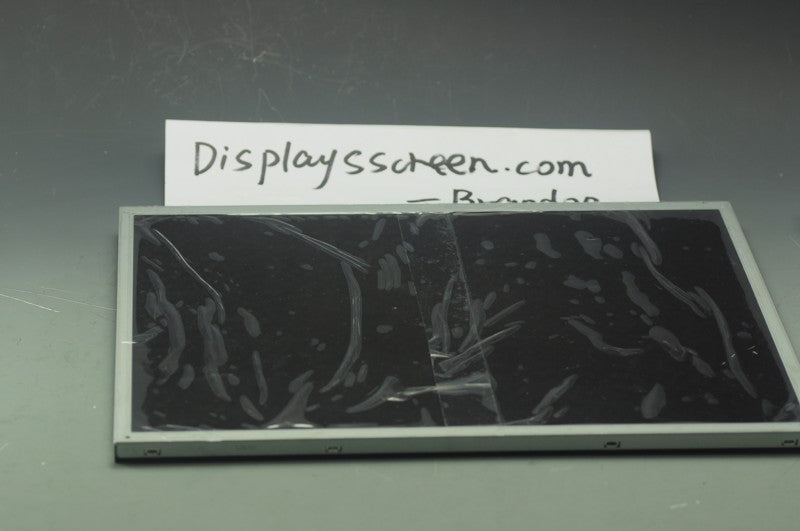

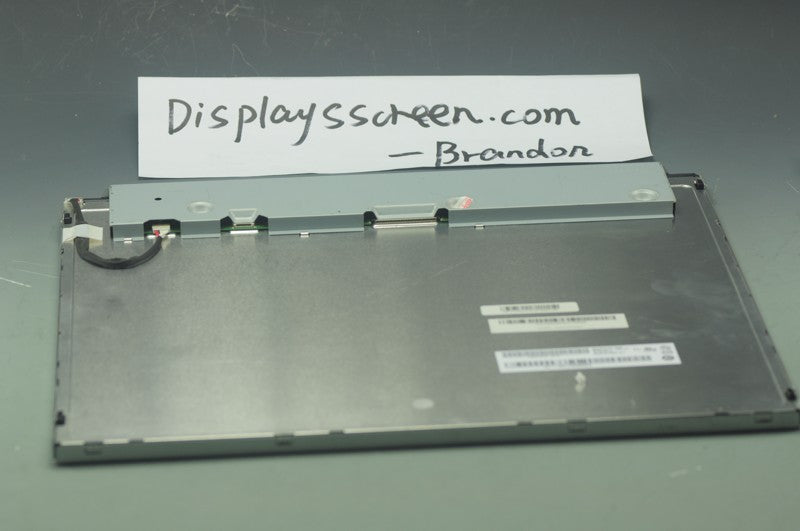

Original 17 inch LCD Screen Display Panel G170EG01 V1 G170EG01 V.1
$289.98
| Specification | |
| Brand | AUO |
| Model | G170EG01 V1 |
| Type | a-Si TFT-LCD |
| Size | 17" |
| Aspect Ratio | 4 : 3 (Width: Height) |
| Resolution | 1280*1024 |
| Display Mode | TN, Normal White |
| Surface Dispose | Matte, Hard coating(3H) |
| Brightness | 350cd/㎡(Typ.) |
| Contrast | 1000:1(Typ.) |
| Display Color | 16.7M (6-bit / 6-bit + FRC) |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) (ms) |
| View Angle | 85/85/80/80 (Typ.)(CR≥10) (Left/ Right/ Up / Down) |
| Scanning Frequency | 60Hz |
| Tube Type | WLED |
| Singal Interface | LVDS (1 ch, 6/8-bit) |
| Voltage | 5.0V(Typ.) |
| Notice: The LCD screen can be widely used in industrial monitor, tablet PC, medical equipment and industrial electronic products. | |
