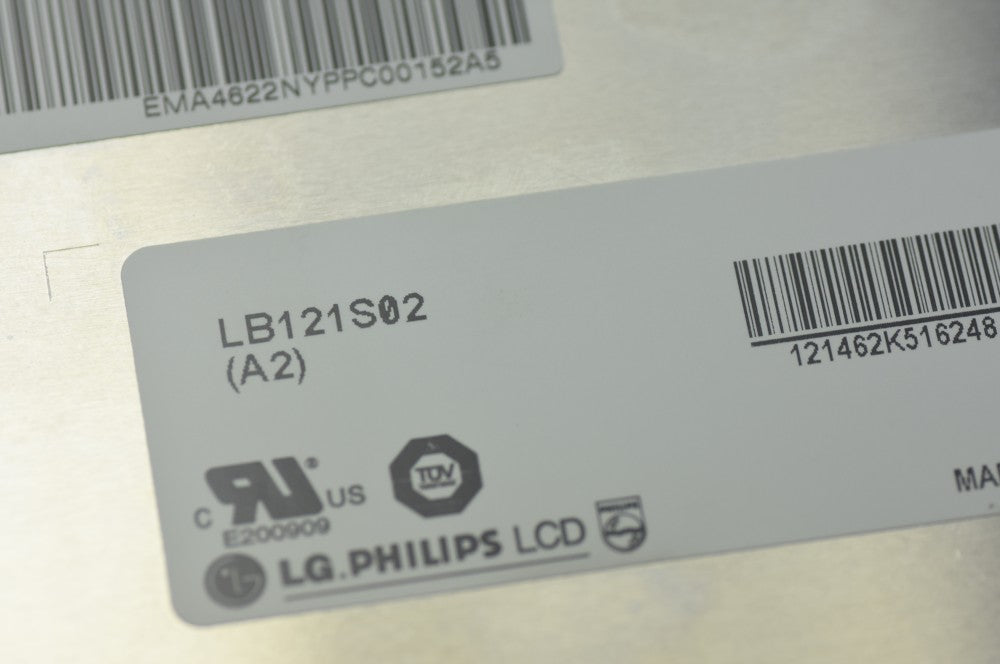

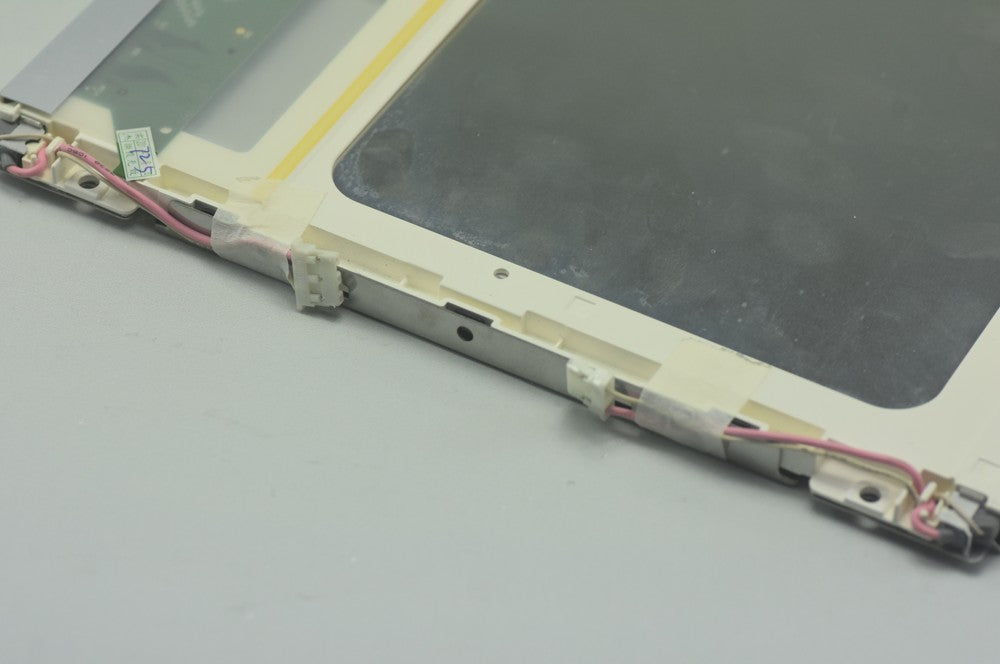

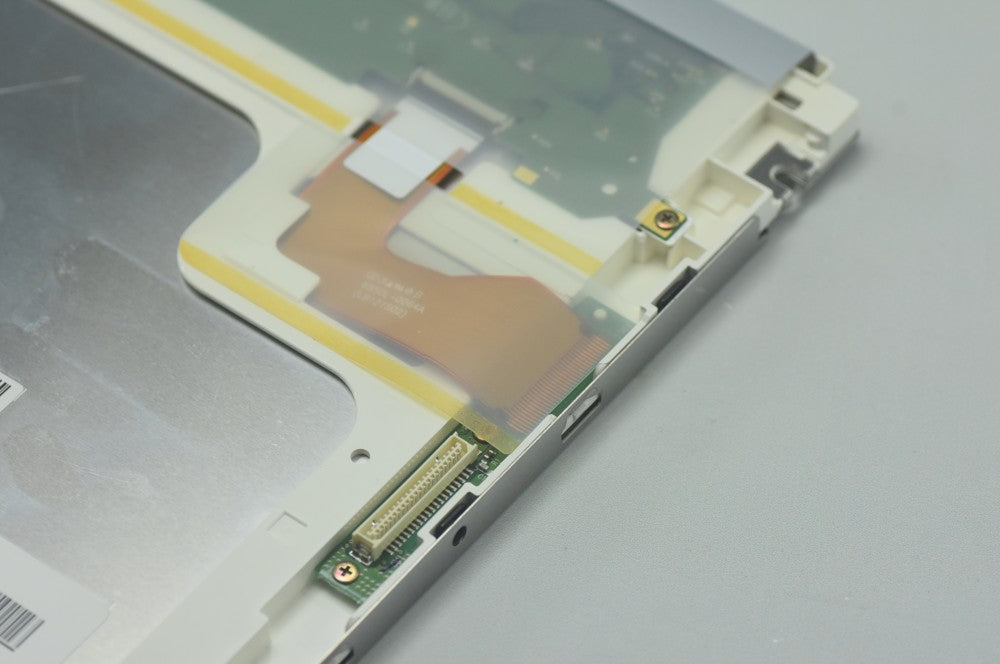

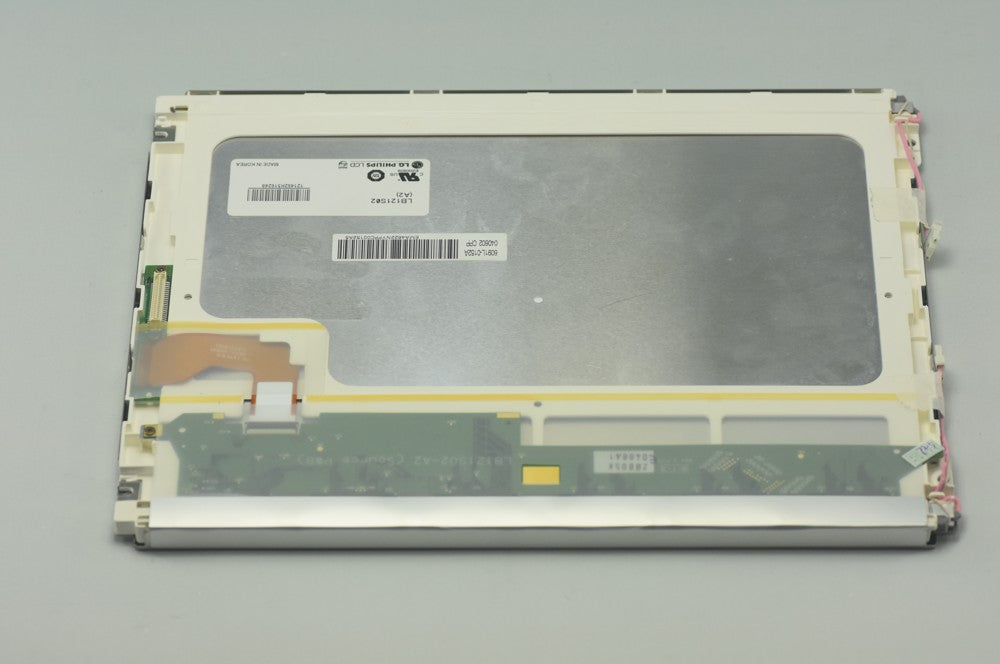

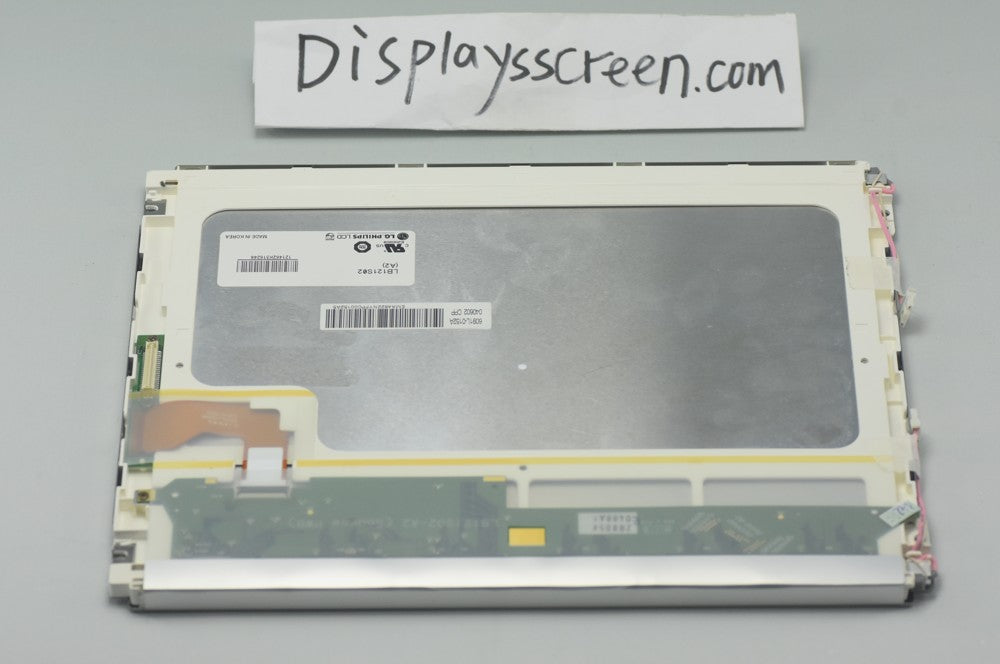

Original 12.1" LB121S02-A2 LB121S02 (A2) LCD Panel 800*600 CCFL
$165.99
Skip to product information
Panel brand: LG.Philips Panel model: LB121S02-A2 Panel type: a-Si TFT-LCD Panel size: 12.1" Outline Dimension: 280.0 x 218.0 x 11.0 mm Resolution: 800*600 Display mode: TN, Normally white, transmission type Surface treatment: Matte, hard-core coating (3H) Panel Brightness: 300cd/㎡(Typ.) Contrast: 200:1 (Typ.) Display Color: 262K (6-bit) Response Time: 20/35(Typ.)(Tr/Td) Visual Angle: 60/60/40/55(Typ.)(CR≥10) (L/R/U/D) Scanning Frequency:60Hz Lamp Type: 2pcs CCFL Signal Connector: Parallel RGB (1 ch, 6-bit) Panel voltage: 3.3V (Typ.)(VCC) Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
Original 12.1" LB121S02-A2 LB121S02 (A2) LCD Panel 800*600 CCFL
$165.99
