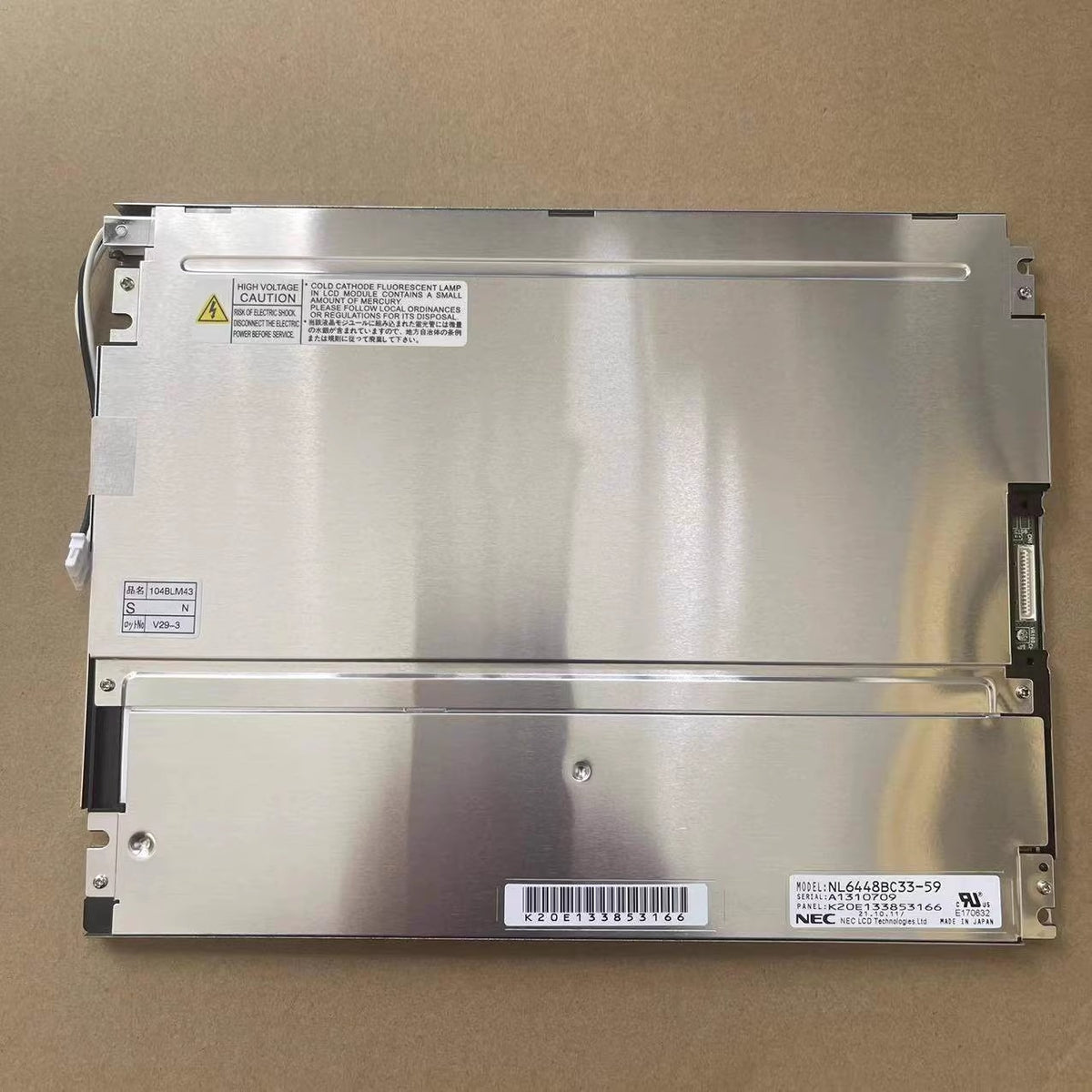

Origina NEC 10.4" NL6448BC33-59 LCD Panel Display Screen Panel

Panel brand: NEC
Panel model: NL6448BC33-59
Panel type: a-Si TFT-LCD
Panel size: 10.4"
Active Area: 211.2 x 158.4
Visual Area: 215.4 x 161.8
Outline Dimension:243.0 x 185.1 x 10.5 mm
Resolution: 640*480
Display mode: TN, Normally white, transmission type
Surface treatment: Clear, hard-core coating (3H)
Panel Brightness: 450cd/㎡(Typ.)
Contrast:600:1 (Typ.)
Display Color: 262K (6-bit)
Response Time: 8/25(Typ.)(Tr/Td)
Visual Angle: 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Lamp Type: 2pcs CCFL
Signal Connector: CMOS (1ch, 6-bit)
Connector: 31pins
Panel voltage: 3.3/5.0V (Typ.)(VCC)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
