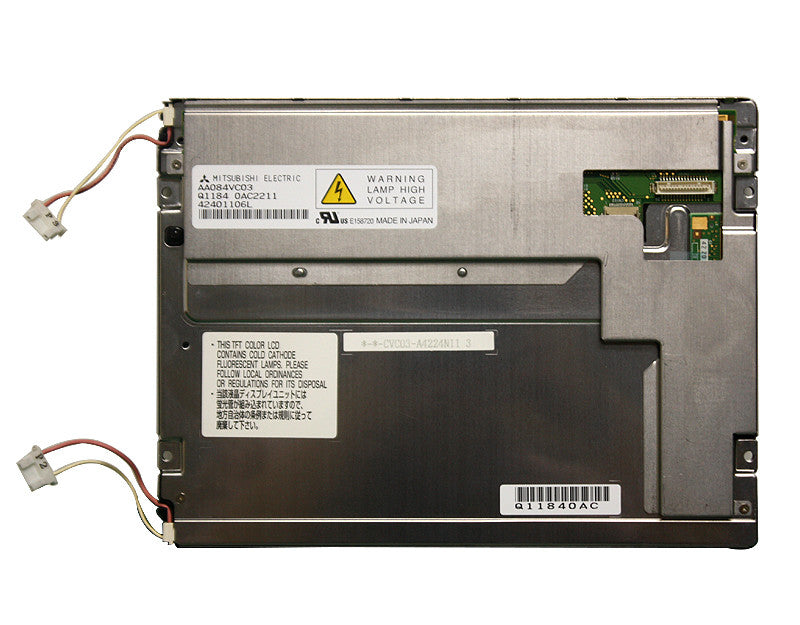

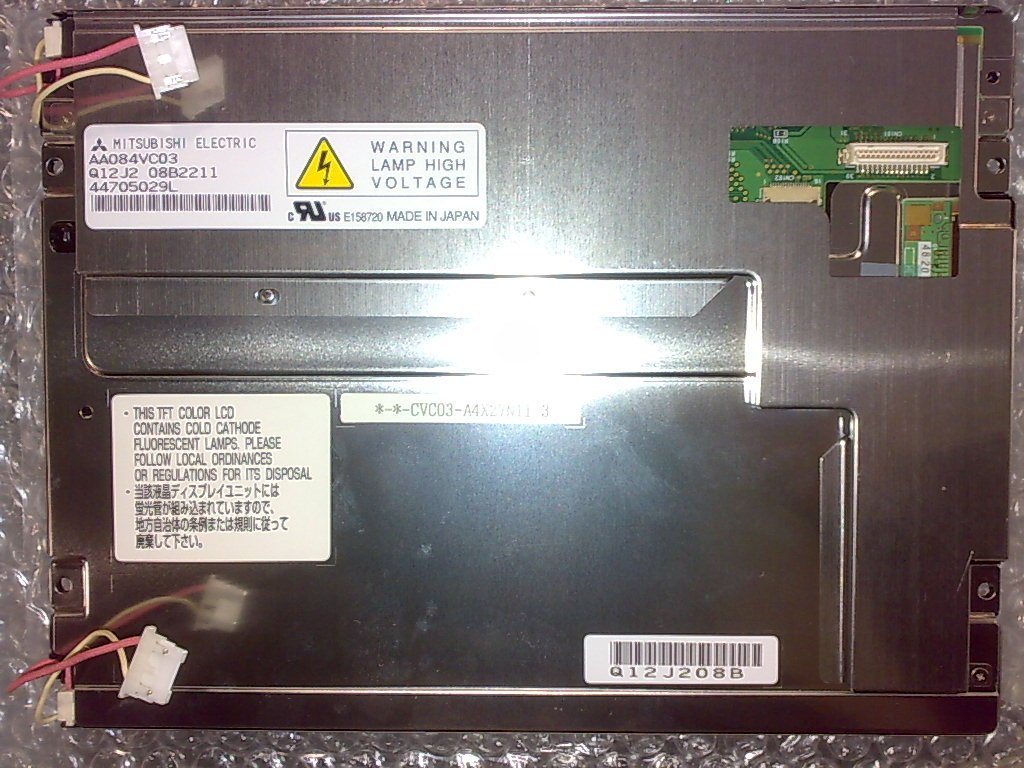

New 8.4 inch AA084VC03 LCD Panel CCFL LCD Display Screen 640*480

Panel brand: Mitsubishi
Panel model: AA084VC03
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 8.4 "(inches)
Display Area: 170.9*128.2mm
Visual Dimension: 174.9*132.2mm
Resolution: 640*480
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 450 CD/㎡(Typ.)
Contrast: 450:1 (Typ.)
Display color: 262K/16.7M   (6-bit / 8-bit)
Response time: 8/27 (Typ.) (Tr/Td)
Visual Angle: 65/65/50/60 (Typ.) (CR p 10) (L/R/U/D)
Tube type: 2pcs CCFL
The signal types: CMOS (1 ch, 6- bit)
Panel voltage: 3.3 V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
