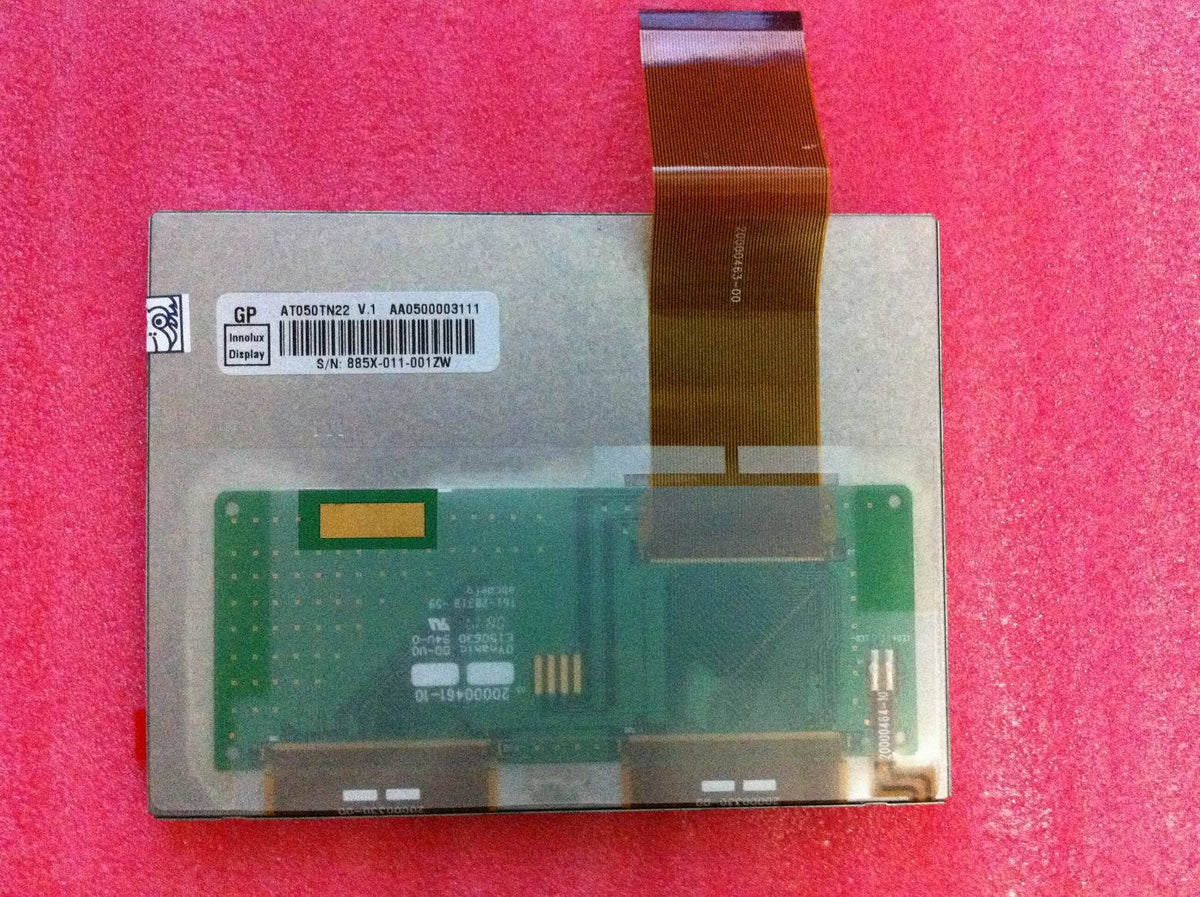

New 5 inch LCD Screen AT050TN22 V.1 LCD Display Panel 640*480

Panel brand: INNOLUX
Panel model: AT050TN22 V.1
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 5.0" (inch)
Resolution:640*480
The display mode: TN, Normally White, Transmission-type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 250 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display color: 16.7M (8-bit)
Response Time: 10/15(Typ.) (Tr/Td)(ms)
Visual Angle: 70/70/50/70(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 3S6P WLED
Singal Connector: Parallel (1 ch,8- bit)
Panel Voltage: 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
