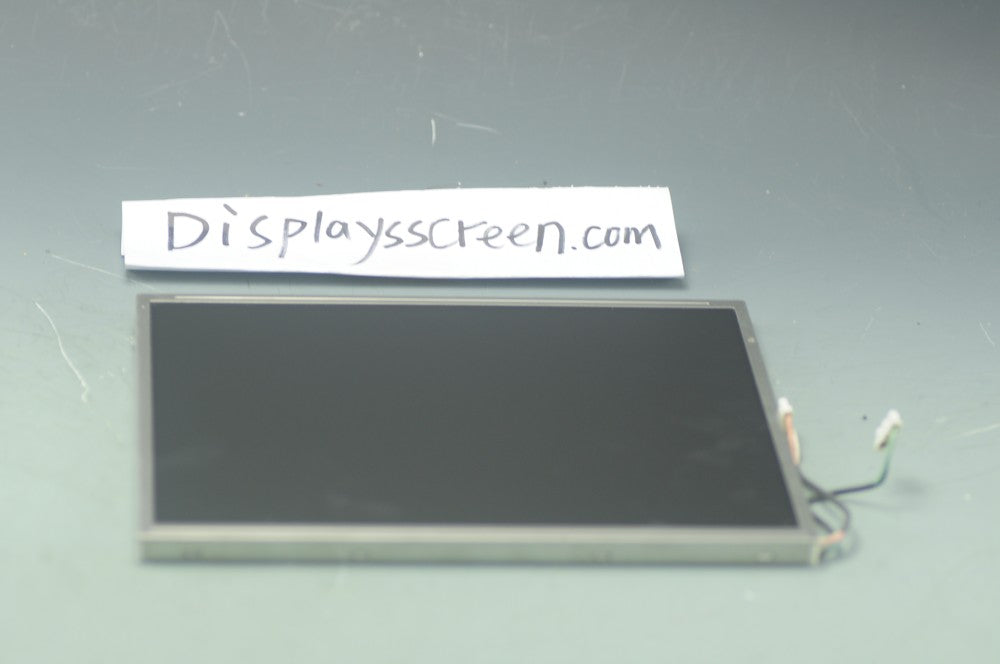

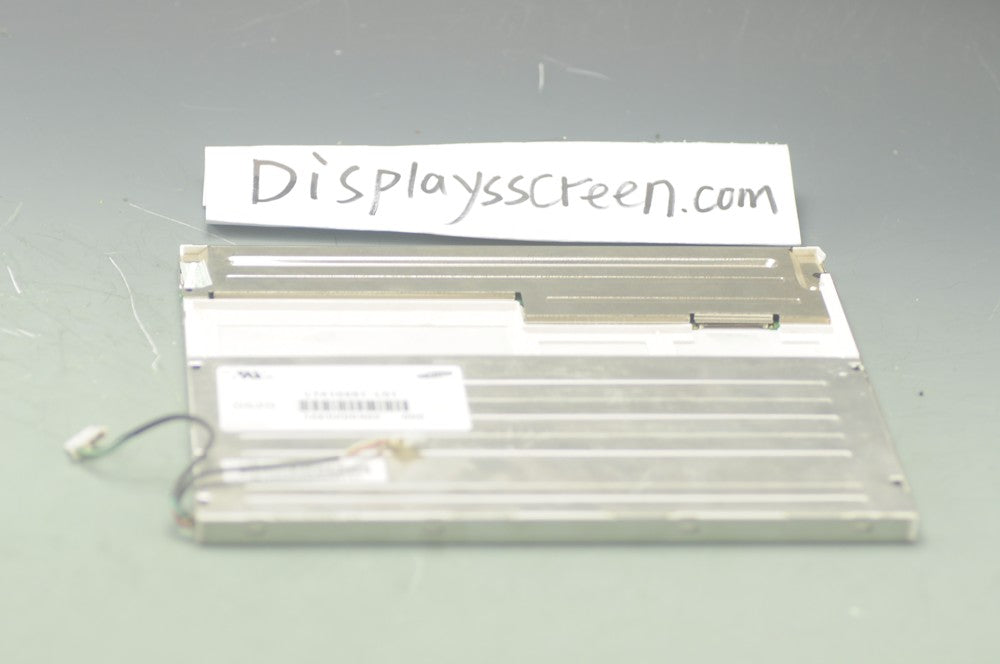

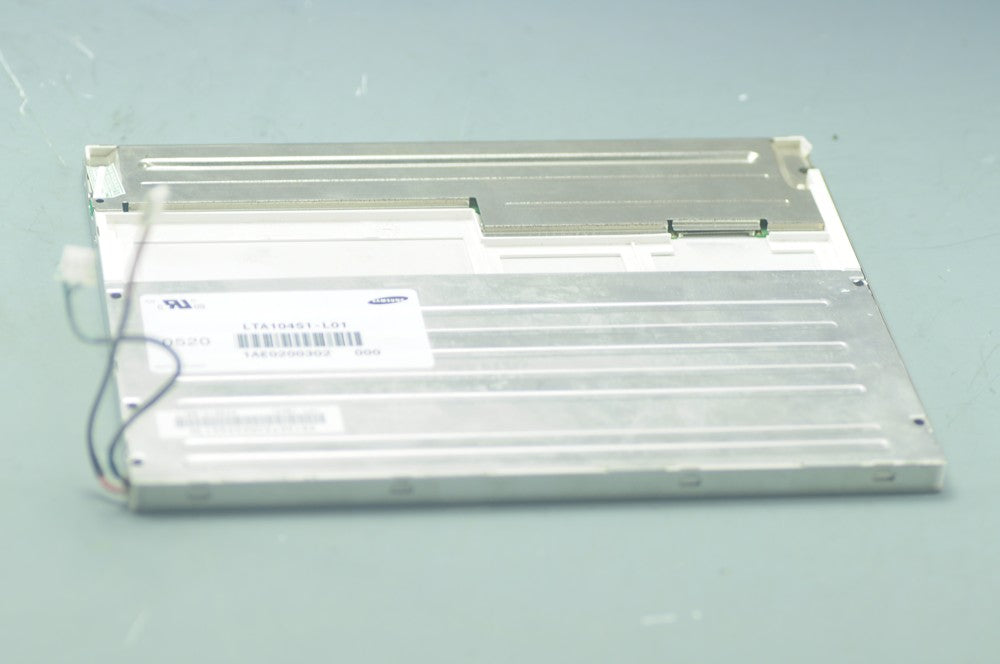

LTA104S1-L01 10.4" LCD Display Screen LCD Panel 800*600

Panel brand: Samsung

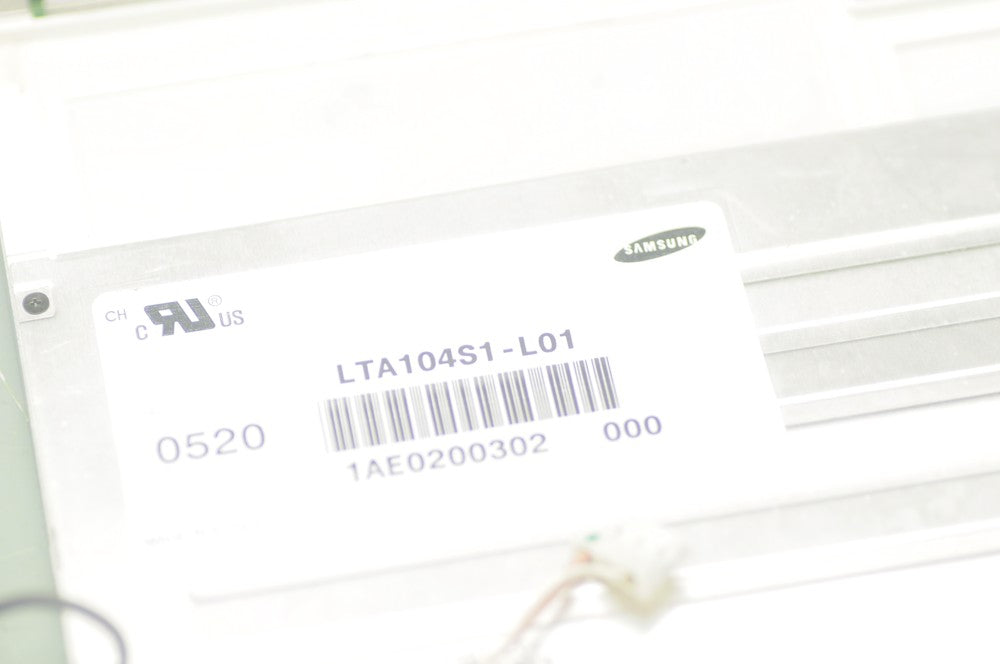

Panel model: LTA104S1-L01
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 10.4"(inches)
Width Height Rate: 4:3
Display Area: 211.2mm(H)x158.4mm(V)
Visual Area: 215.6mm(H)x162.8mm(V)
Resolution:800*600
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 350 cd/㎡(Typ.)
Contrast: 150:1 (Typ.)
Display color: 262K/16.7M   (6-bit / 8-bit)
Response Time: 10/30 (Typ.) (Tr/Td)(ms)
Visual Angle: 50/50/35/35 (Typ.) (CR ≧ 10) (L/R/U/D)
Connector: LVDS(1 ch, 6bit)
Panel voltage: 3.3V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
