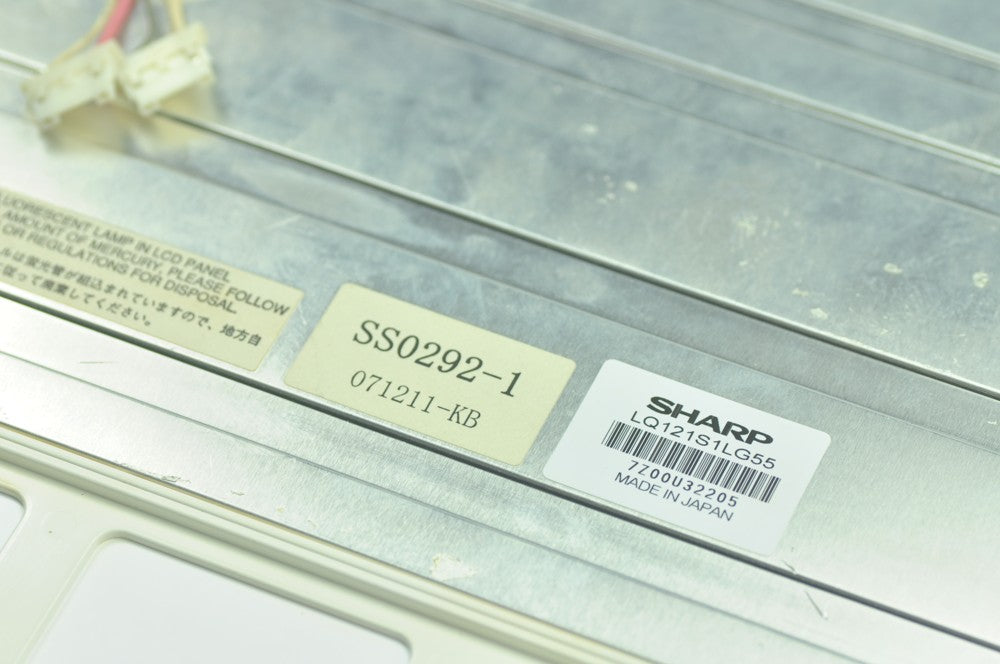

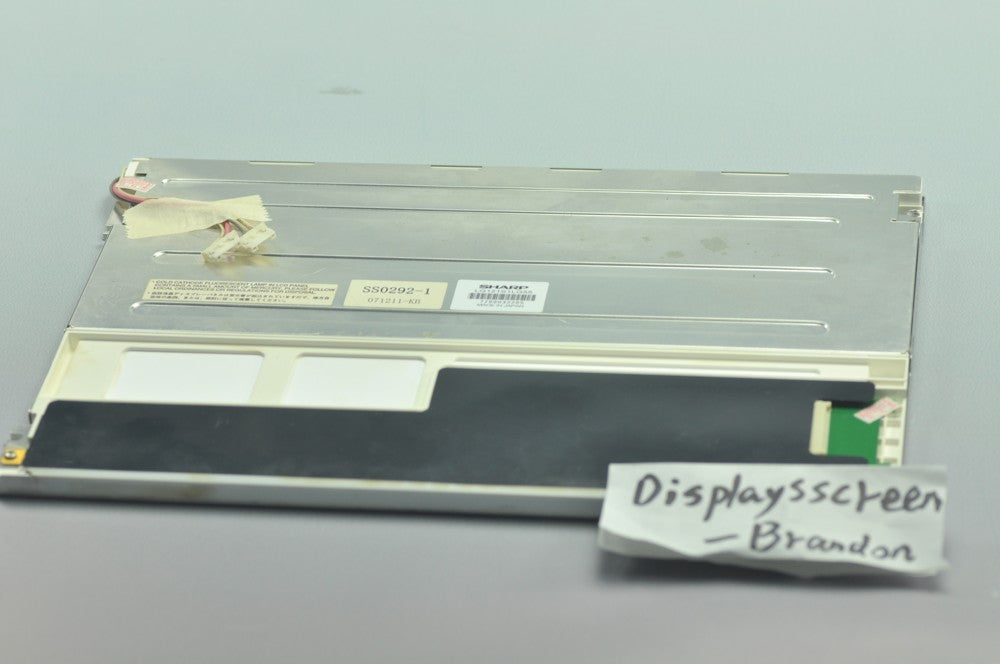

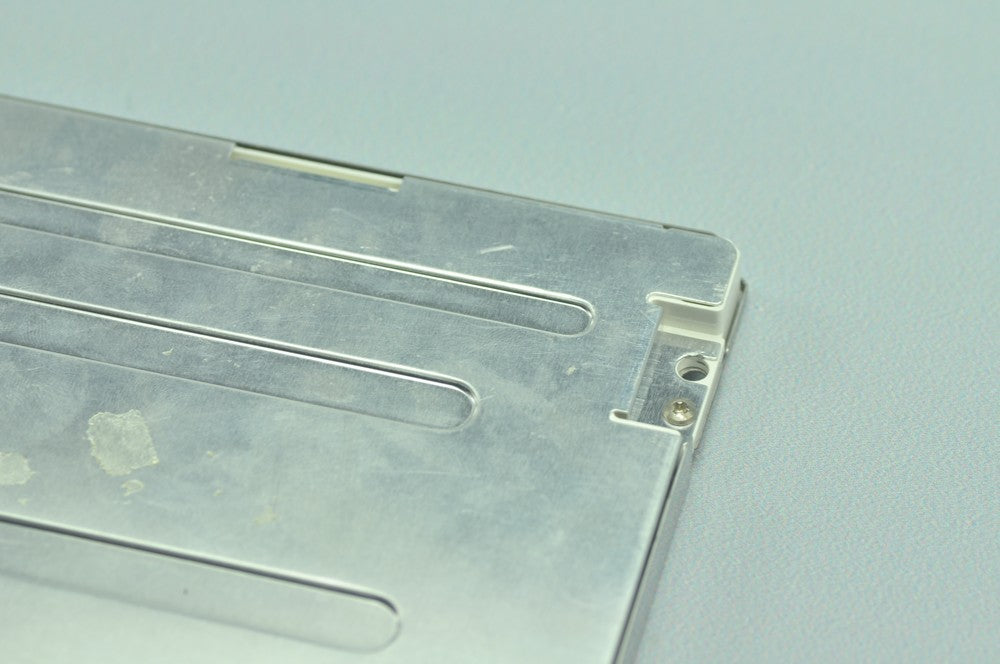

LQ121S1LG55 12.1 inch LCD Display Screen LCD Panel

Panel brand: Sharp
Panel model: LQ121S1LG55
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 12.1"(inches)
Width Height Rate: 4:3
Display Area: 246.0mm(H)x184.5mm(V)
Visual Area: 249.0mm(H)x187.5mm(V)
Resolution:800*600
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 330 cd/㎡(Typ.)
Contrast: 450:1 (Typ.)
Display color: 16.2M (6-bit)
Response Time: 35 (Typ.) (Tr/Td); 10 (Typ.) (G to G)(ms)
Visual Angle: 70/70/50/60 (Typ.) (CR ≧ 10) (L/R/U/D)

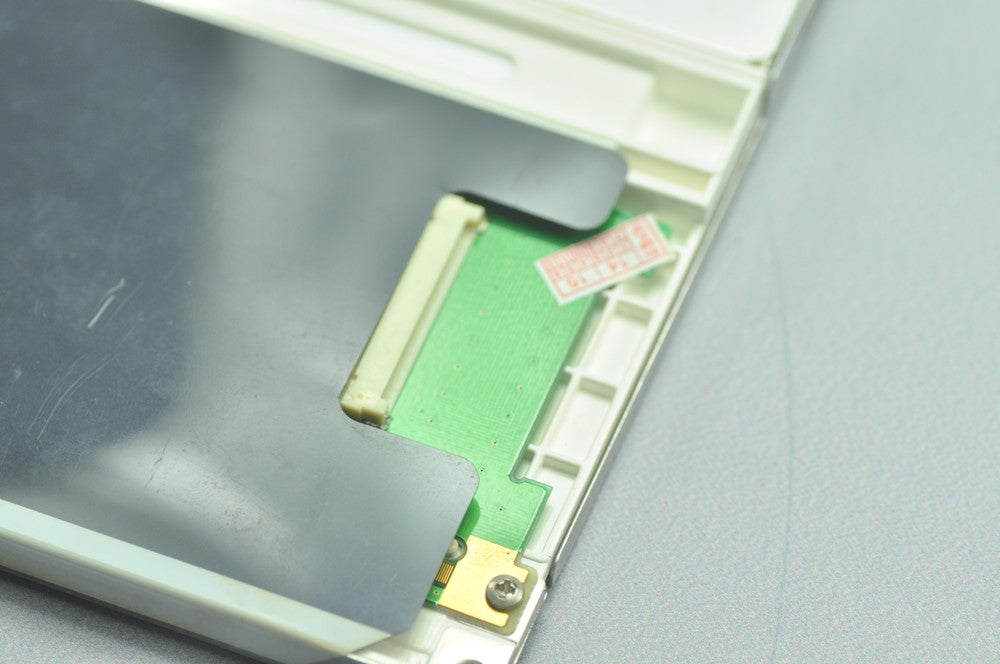

Connector: LVDS(1 ch, 8bit)
Panel voltage: 3.3/5.0V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
