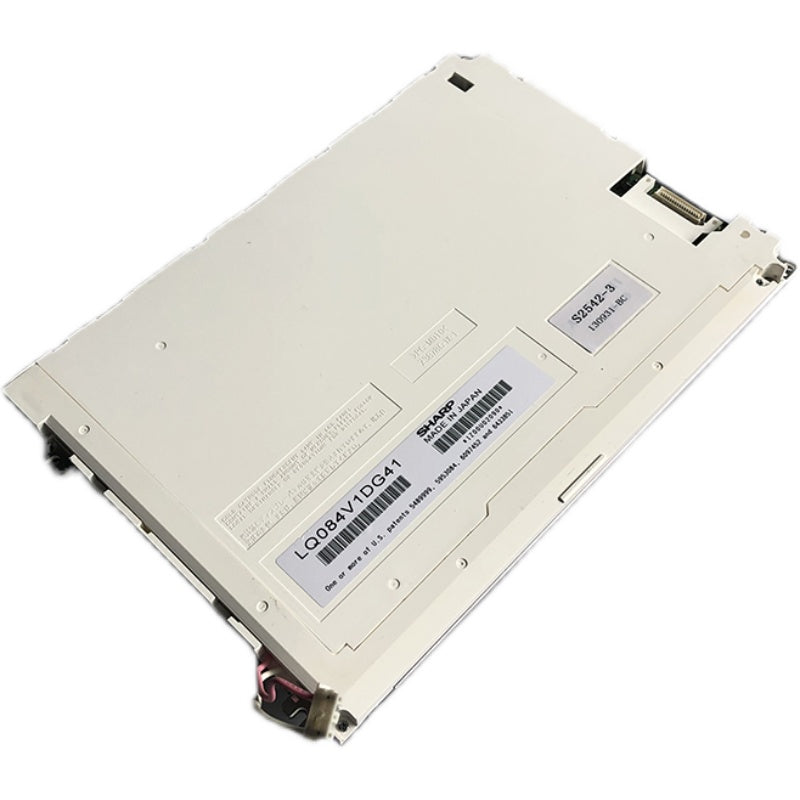

LQ084V1DG41 8.4 inch LCD Panel Industrial LCD Display Screen

Panel brand: Sharp
Panel model: LQ084V1DG41
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 8.4"(inches)
Width Height Rate: 4:3
Display Area: 170.88mm(H)x128.16mm(V)
Visual Area: 175.9mm(H)x134.6mm(V)
Resolution:640*480
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 300 cd/㎡(Typ.)
Contrast: 600:1 (Typ.)
Display color: 262K(6-bit)
Response Time: 10/25 (Typ.) (Tr/Td)(ms)
Visual Angle: 70/70/60/50 (Typ.) (CR ≧ 10) (L/R/U/D)
Connector: Parallel RGB(1 ch, 6bit)
Panel voltage: 3.3/5.0V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
