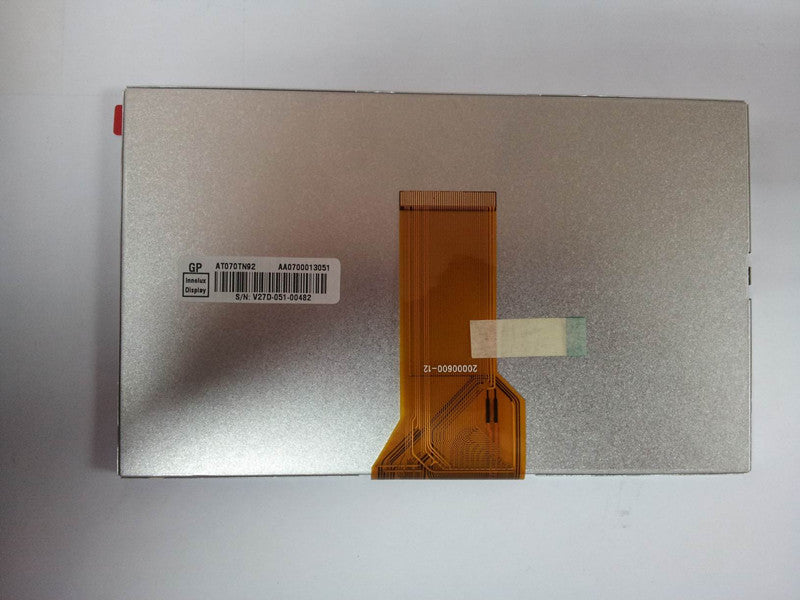

Brand New Original AT070TN92 7.0" LCD Panel 800*480
$75.98
Skip to product information
Panel brand: INNOLUX
Panel model: AT070TN92
Panel type: a-Si TFT-LCD
Panel size:7.0"(inches)
Width Height Proportion: 16:9
Display Area: 154.08x85.92mm
Visual Area: 156.7x89.1mm
Outline Size:164.9x100.0mm
Resolution: 800*480
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 250 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Time: 5ms
Visual Angle: 50/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Signal Connector: Parallel RGB (1 ch, 6-bit)
Backlight: LEDs
Connetior: 50pins
Panel voltage: 3.3/10.4/16.0/-7.0V(Typ.)(VCC/AVDD/VGH/VGL)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
