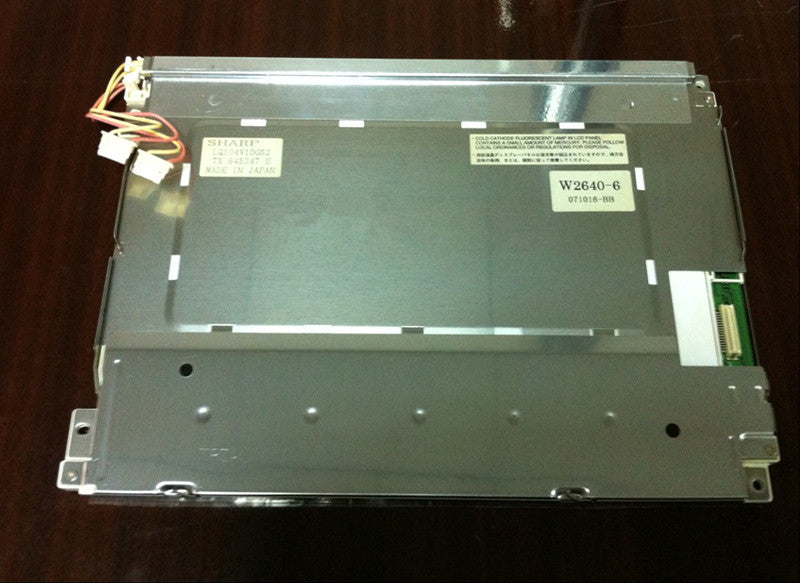

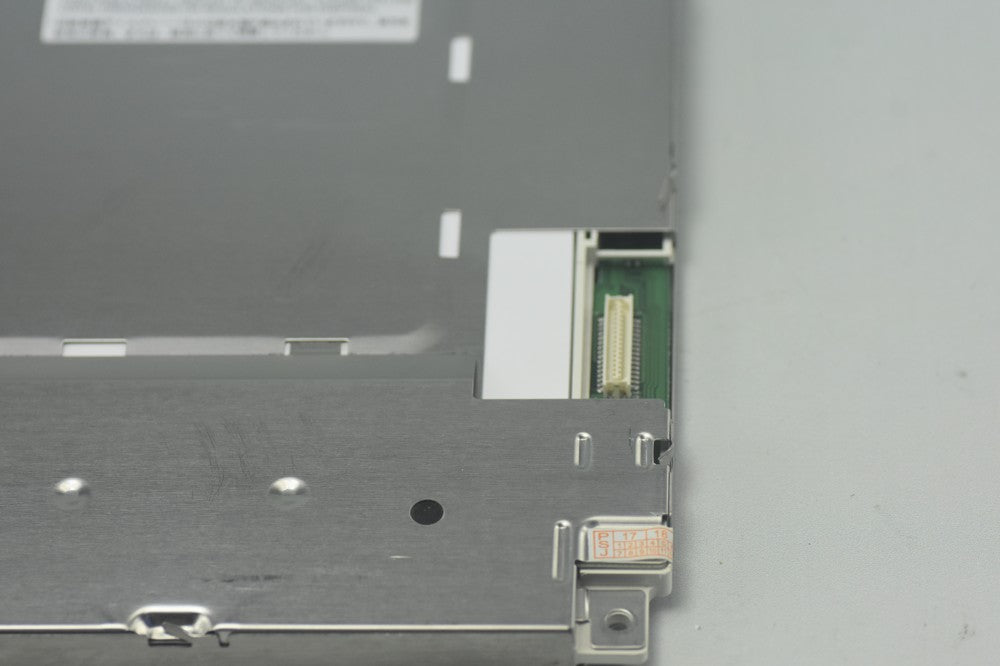

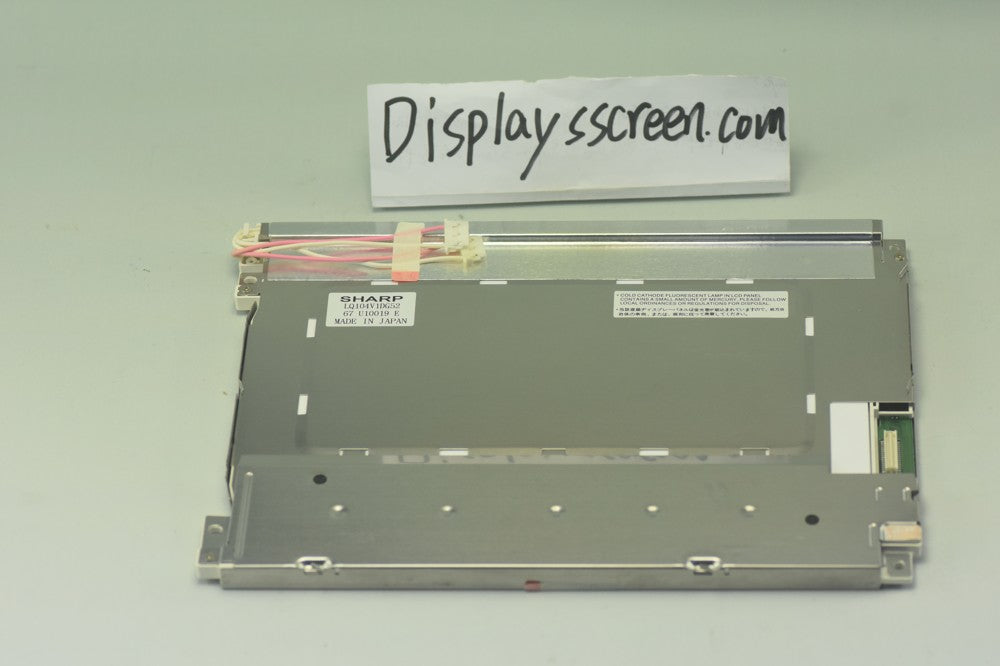

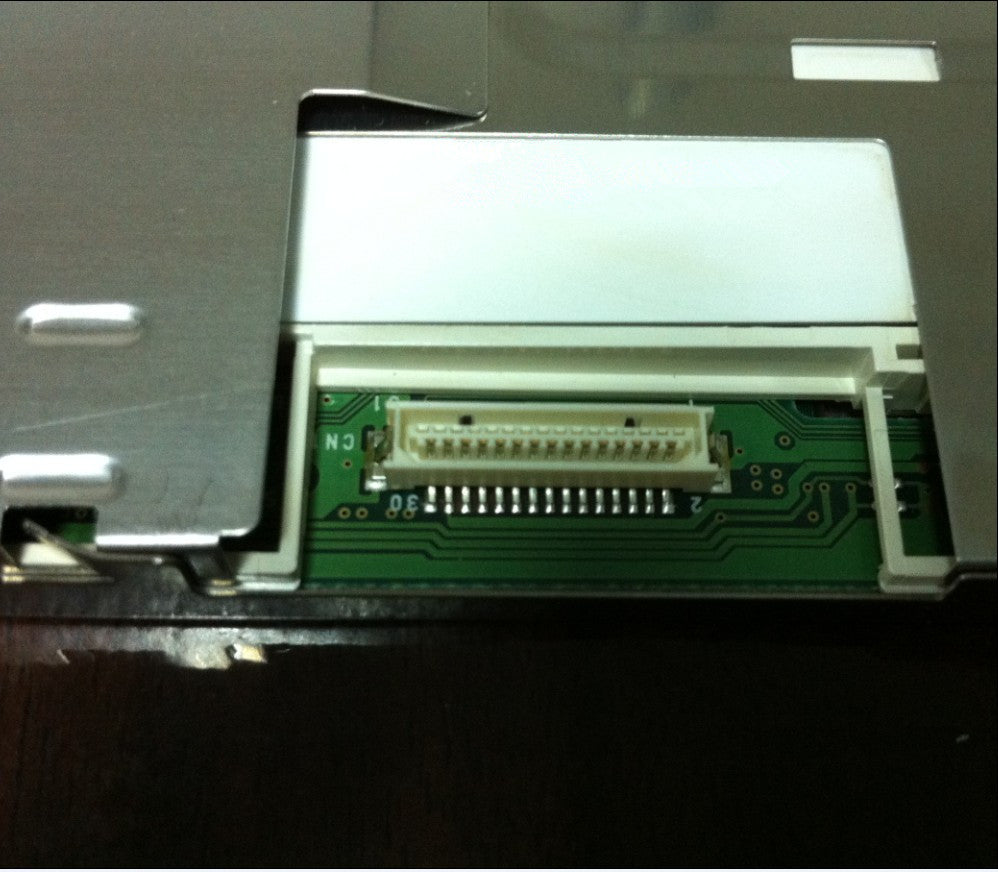

Brand New LQ104V1DG52 10.4" LCD Panel 640*480 LCD Screen Display
$123.99
Skip to product information
Panel Brand: Sharp
Panel Model: LQ104V1DG52
Panel Type: a-si TFT-LCD,LCD Panel
Panel Size: 10.4 inch
Resolution: 640(RGB)x480,SVGA
Display Mode: TN,Normally white,transmissive
Surface: Antiglare,Hard coating(3H)
Brightness: 350 cd/㎡ (Typ.)
Contrast Ratio: 300:1(Typ)
Display Colors: 262K (6-bit)
Response Rime: 0/25(Typ.)(Tr/Td)
Viewing Angle: 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type: 2 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.5/5.0V (Typ.)(VCC)
Brand New LQ104V1DG52 10.4" LCD Panel 640*480 LCD Screen Display
$123.99
Panel Model: LQ104V1DG52
Panel Type: a-si TFT-LCD,LCD Panel
Panel Size: 10.4 inch
Resolution: 640(RGB)x480,SVGA
Display Mode: TN,Normally white,transmissive
Surface: Antiglare,Hard coating(3H)
Brightness: 350 cd/㎡ (Typ.)
Contrast Ratio: 300:1(Typ)
Display Colors: 262K (6-bit)
Response Rime: 0/25(Typ.)(Tr/Td)
Viewing Angle: 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type: 2 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.5/5.0V (Typ.)(VCC)
