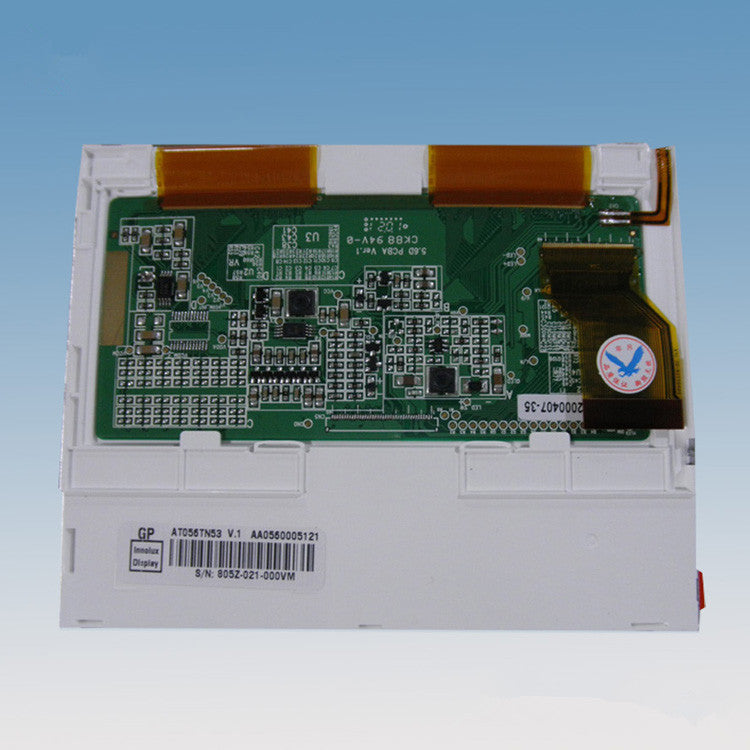

AT056TN53V.1 5 inch LCD Panel 640*480 40pins Display Screen

Panel brand: INNOLUX
Panel model: AT056TN53V.1
Panel type: a-Si TFT-LCD
Panel size:5.6"
Width Height Proportion: 4:3
Visual Area: 112.896 (W)×84.672(H) mm
Outline Size:126.5(W)×100(H)X6.8(D)mm
Resolution: 640*480
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 200 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Time: 5ms
Visual Angle: 70/70/50/70  (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Signal Connector: Parallel RGB (1 ch, 6-bit)
Backlight: LEDs
Connetor: 40pins
Power: 1.6W (Typ)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
