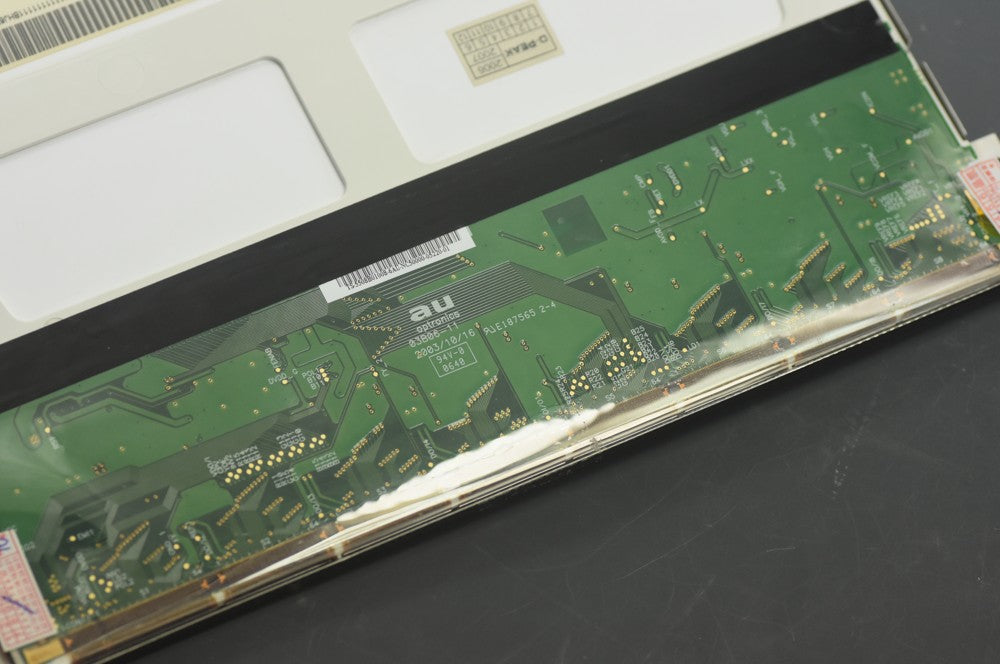

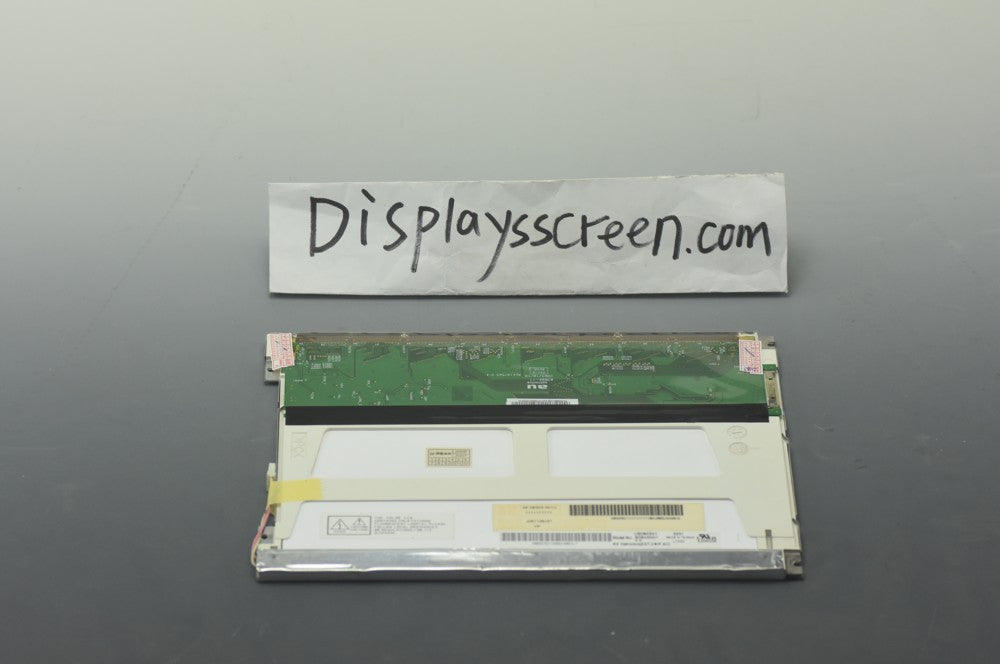

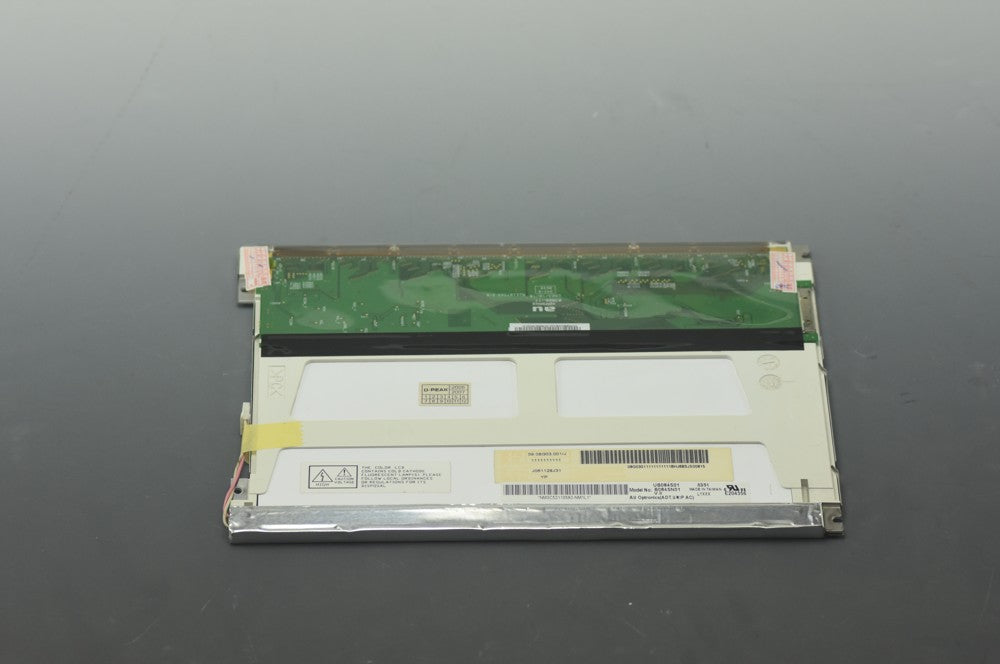

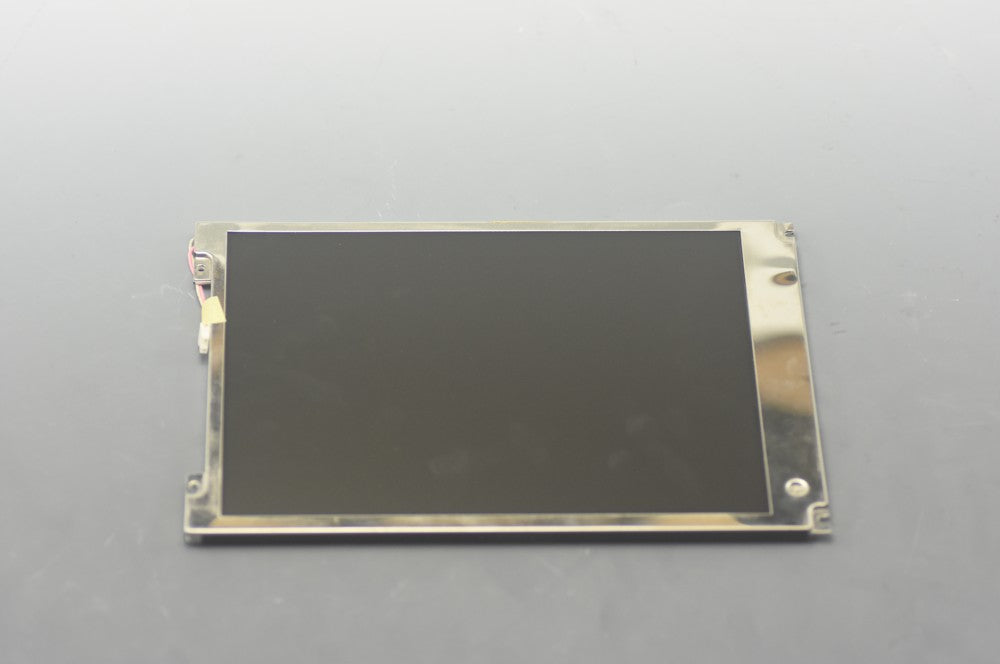

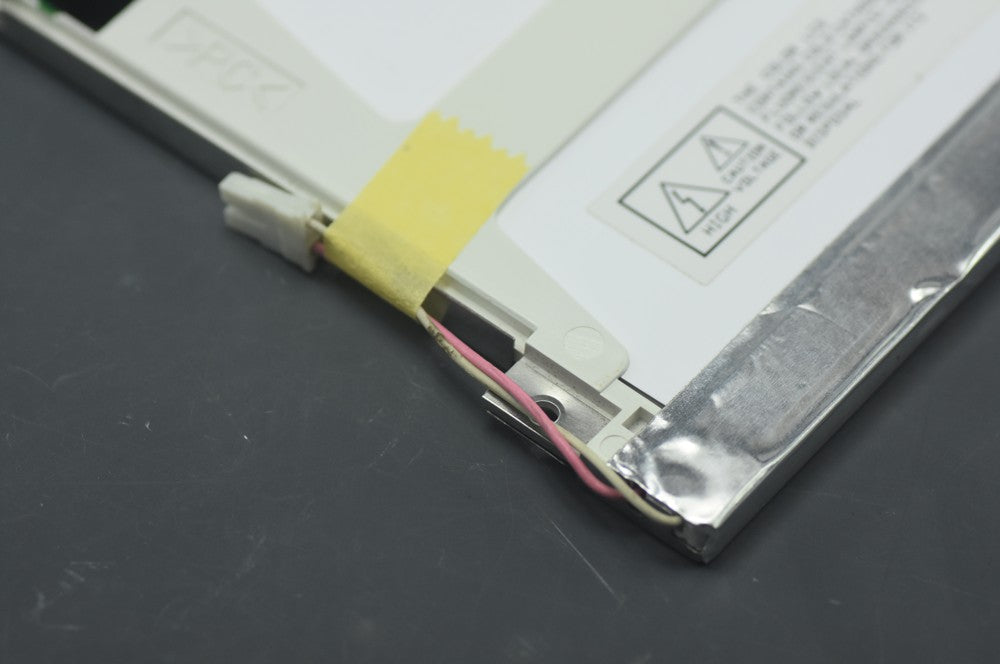

8.4 inch B084SN01 V0 B084SN01 V.0 LCD Panel for Industrial Application

Panel brand: AUO

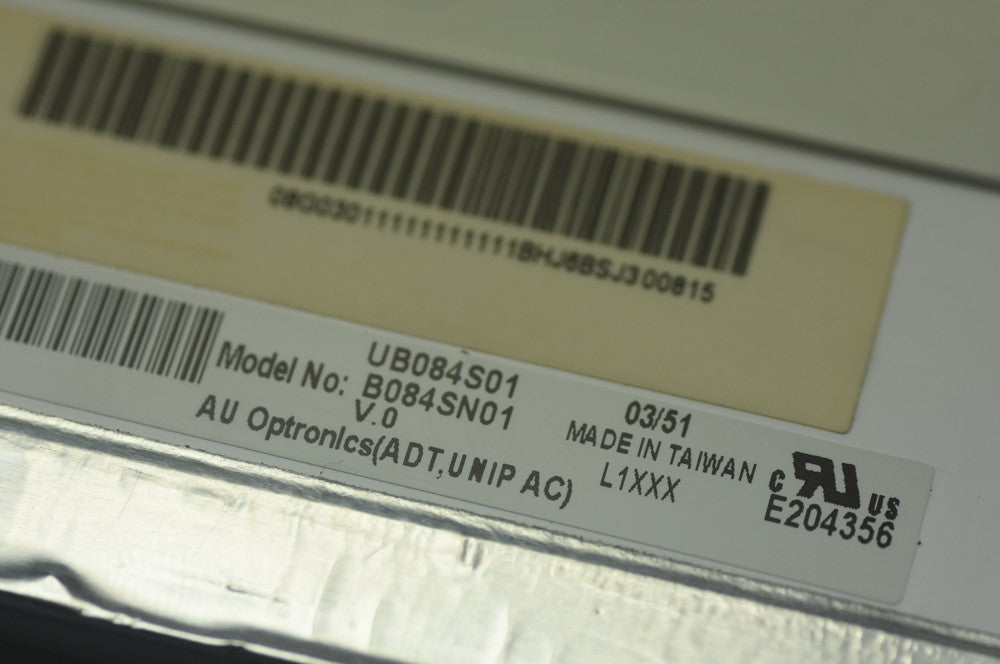

Panel model: B084SN01 V0
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 8.4"(inches)
Display Area: 170.4(H)x127.8(V)
Visual Area: 173.8(H)x131.2(V)
Resolution: 800*600
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 150 CD/㎡(Typ.)
Contrast: 250:1 (Typ.)
Display color: 262K/16.7M   (6-bit / 8-bit)
Response time: 20/30 (Typ.) (Tr/Td) (ms)
Visual Angle: 40/40/30/10(Typ.) (CR p 10) (L/R/U/D)
Connector: LVDS(1 ch, 6bit)
Panel voltage: 3.3 V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
