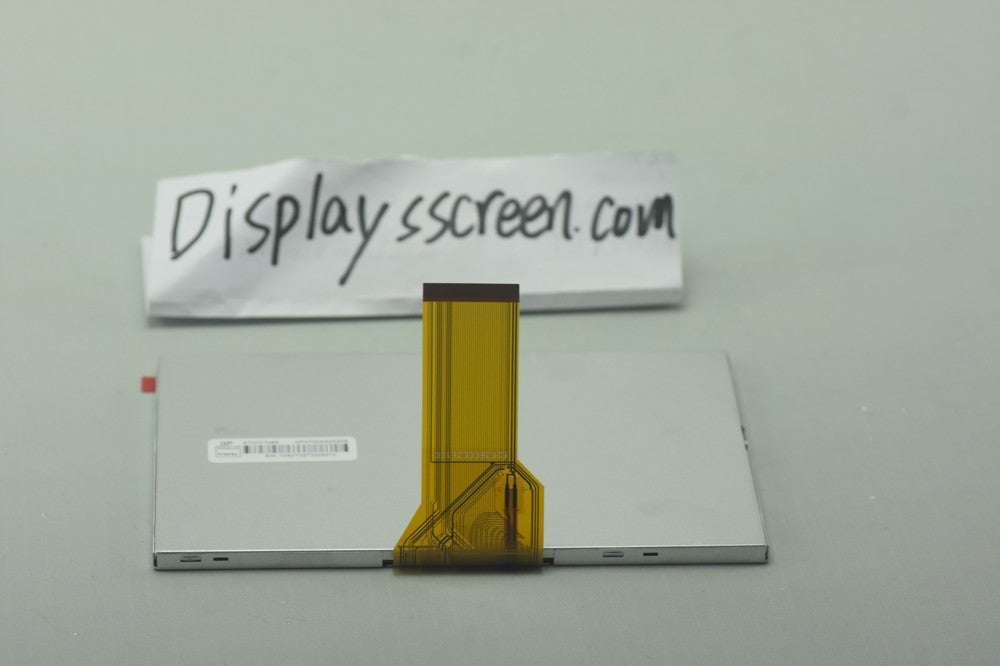

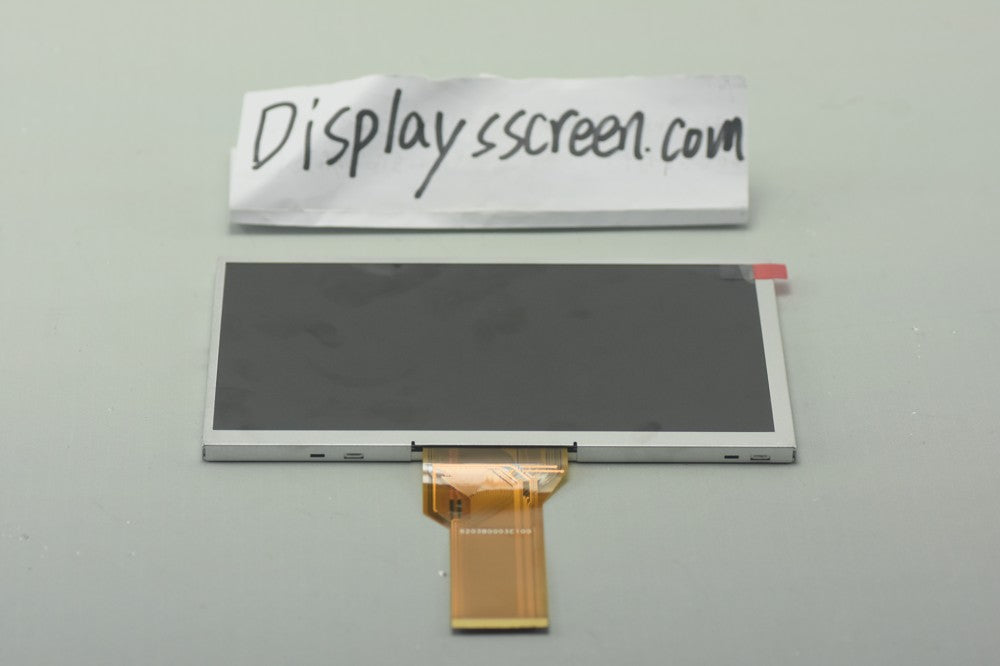

7" AT070TN94 LCD Panel 800*480 50pins LCD Display Screen

Panel brand: Innolux

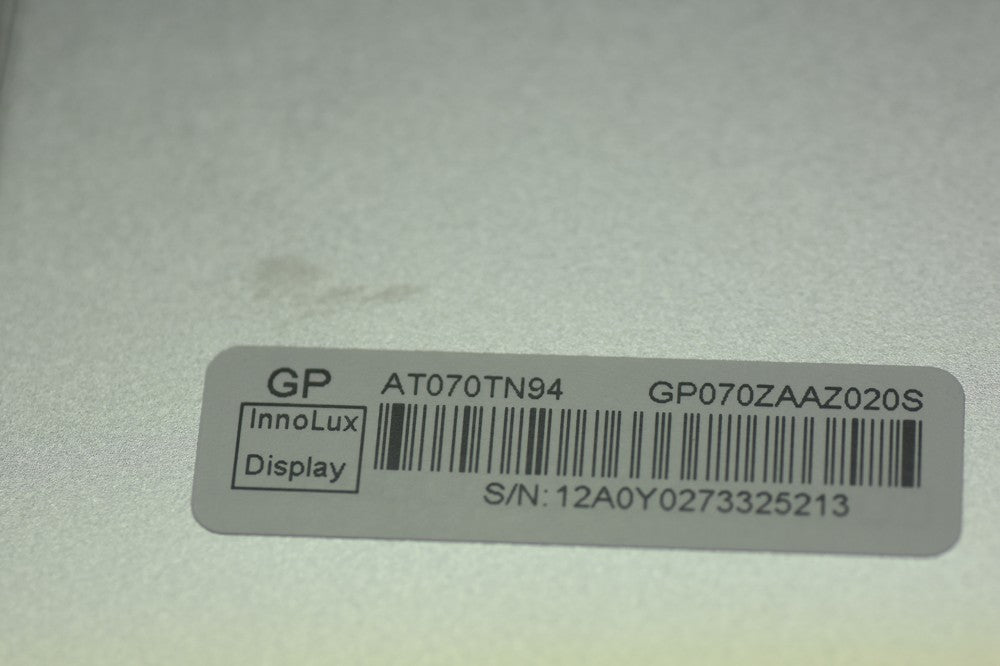

Panel model: AT070TN94
Panel type: a-Si TFT-LCD
Panel size: 7.0"(inches)
Activated Area: 154.08x85.92mm
Visual Area:156.9x89.1mm
Outline Size: 164.9x100.0mm
Width Height Rate: 16:9
Resolution:800*480
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 300 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Time: 10/15 (Typ.)(Tr/Td)  (ms)
Visual Angle: 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Lamp Type: 3S9P WLED
Signal Connector Type: Parallel RGB (1 ch, 6/8-bit)

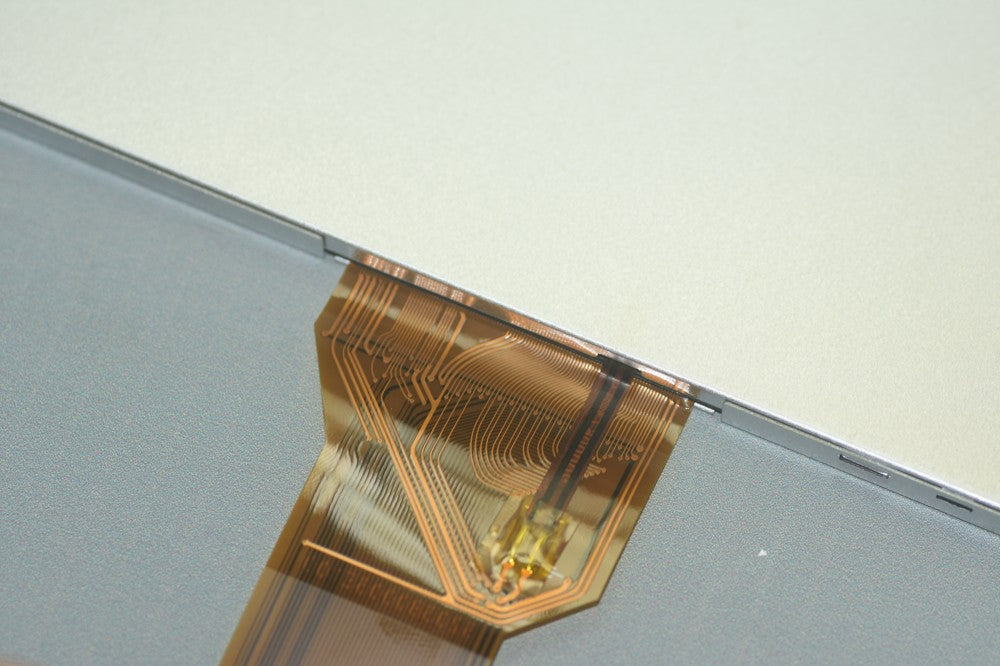

Connector: 50pins
Panel voltage: 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
