5 inch AT050TN22 V.1 LCD Display Screen LCD Panel

Panel brand: INNOLUX
Panel model: AT050TN22 V.1
Panel type: a-Si TFT-LCD
Panel size:5.0"
Width Height Proportion: 4:3
Visual Area: 101.568x76.176mm
Outline Size:117.65(W)X 88.43 (H)X5.7(D)
Resolution: 640*480
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 250 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Time: 30ms
Visual Angle: 70/70/50/70  (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Signal Connector: Parallel RGB (1 ch, 8-bit)
Backlight: LEDs

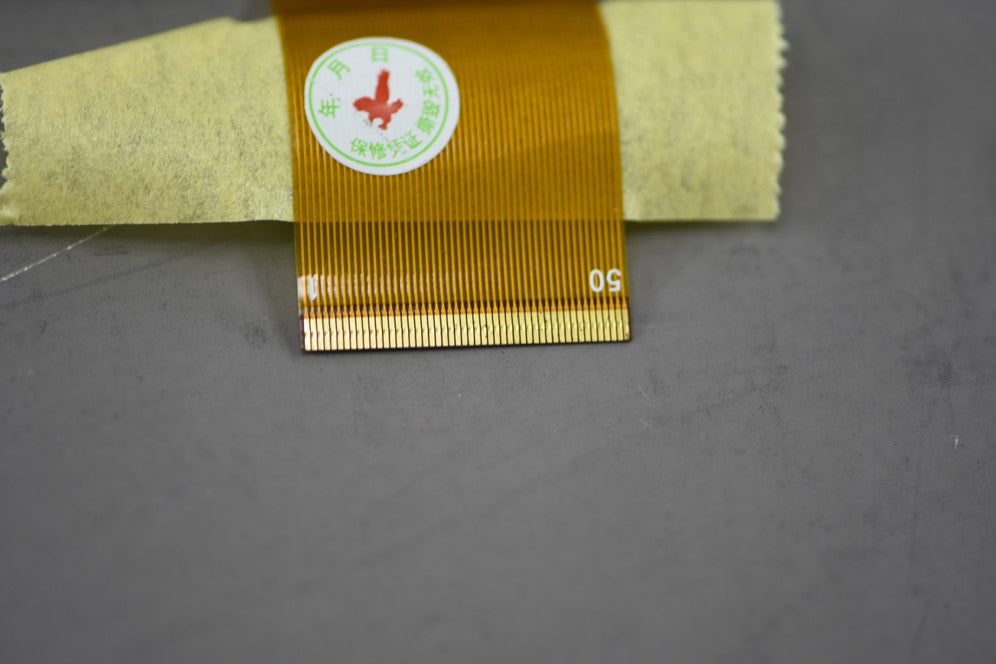

Connetor: 50pins Digital (TTL)
Panel Voltage: 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
