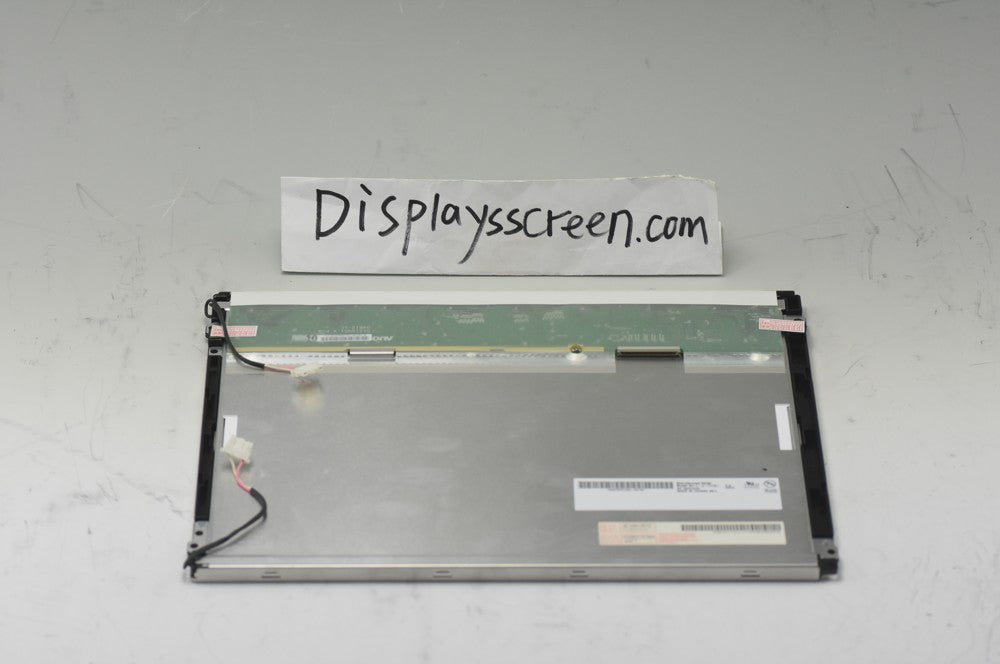

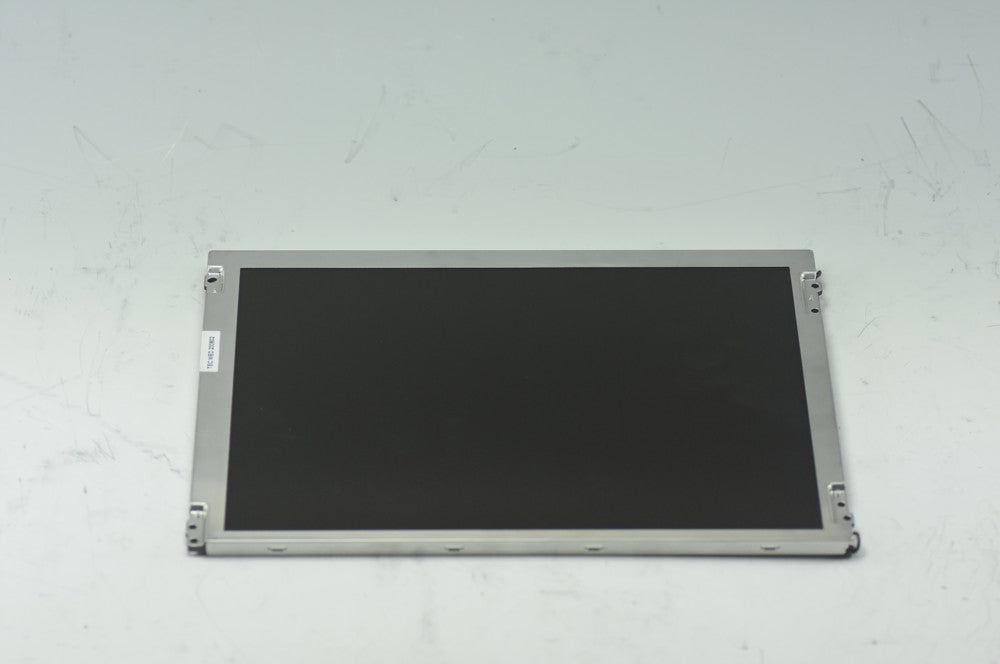

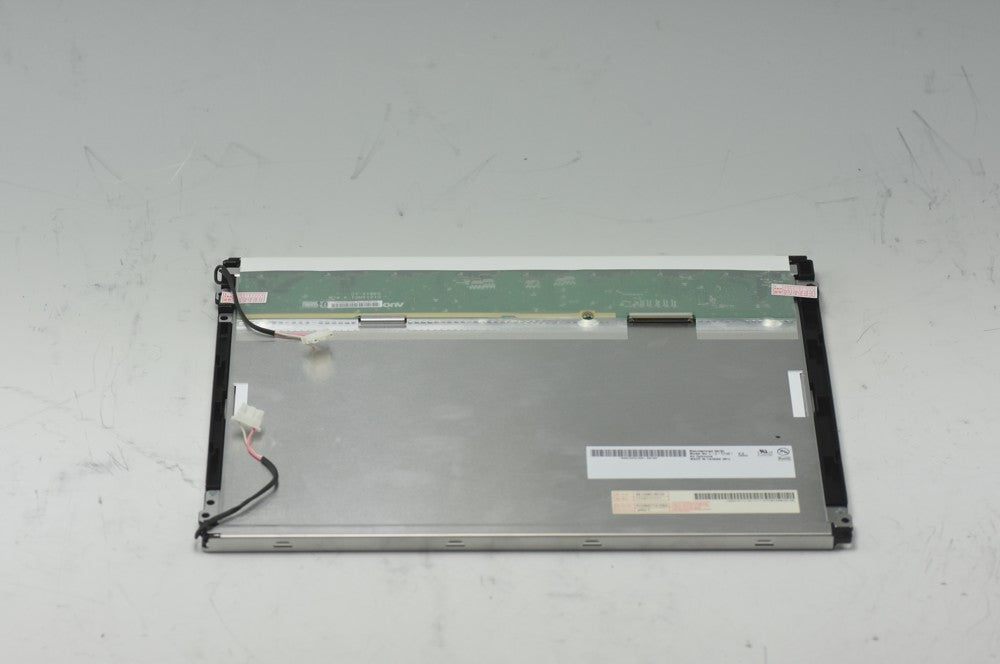

12.1" LCD Display Panel G121SN01 V.0 Industrial LCD Screen
$109.99
Skip to product information
Panel brand: AUO
Panel model: G121SN01 V0
Panel type: a-Si TFT-LCD
Panel size:12.1"
Resolution: 800*600
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 400 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K
Response Time: 10/25(Typ.)(Tr/Td) (ms)
Visual Angle: 70/70/60/50 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Signal Connector: LVDS(1 ch, 6-bit)
Backlight: 2pcs CCFL
Panel Voltage: 3.3V (Typ.)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
