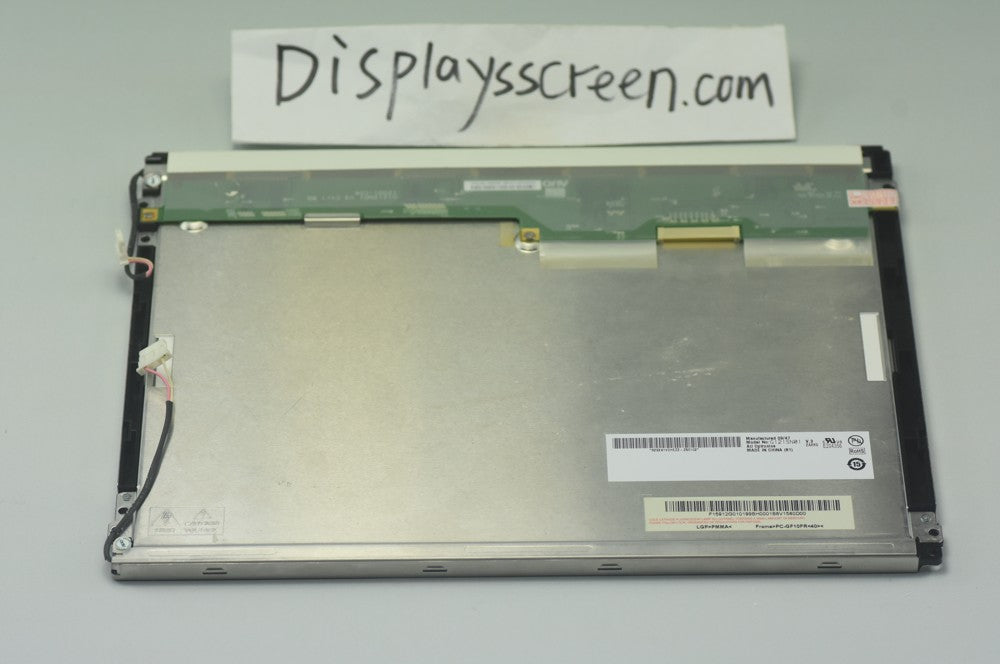

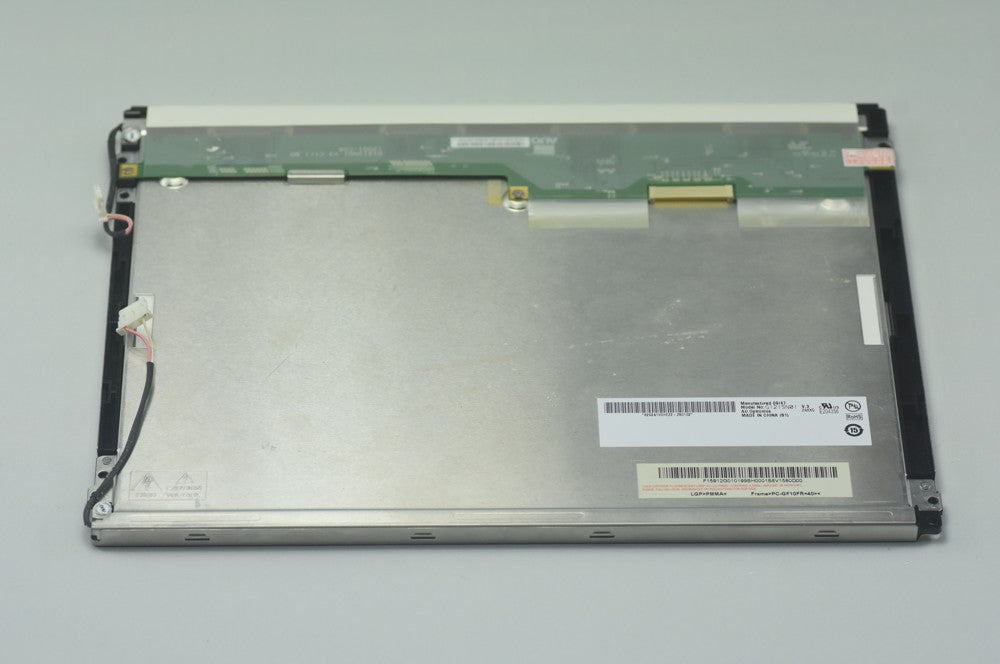

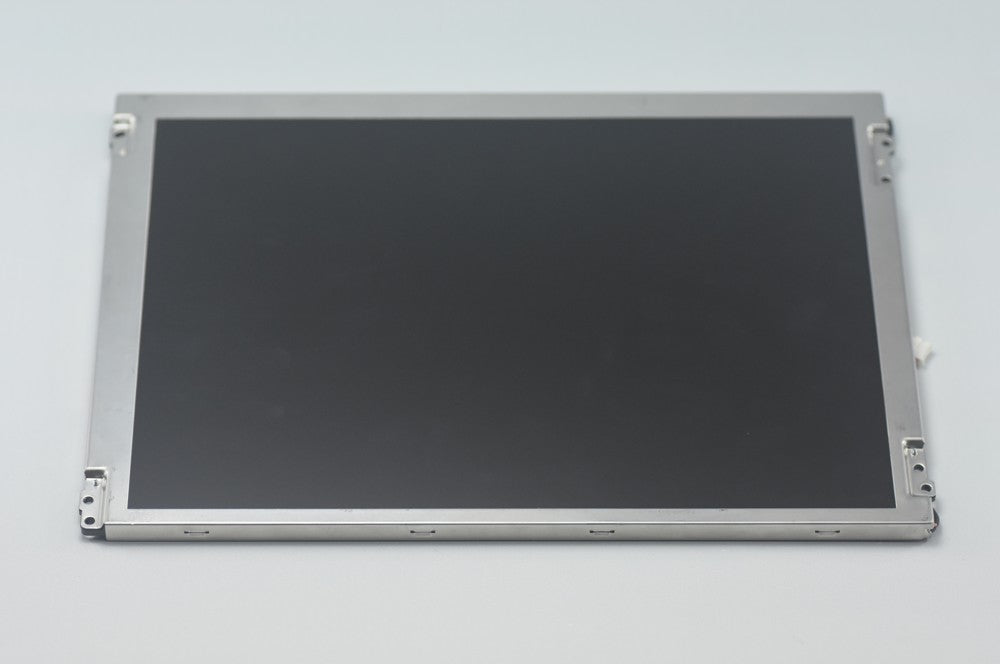

12.1" Display Screen G121SN01 V3 G121SN01 V.3 LCD Panel CCFL

Panel brand: AUO

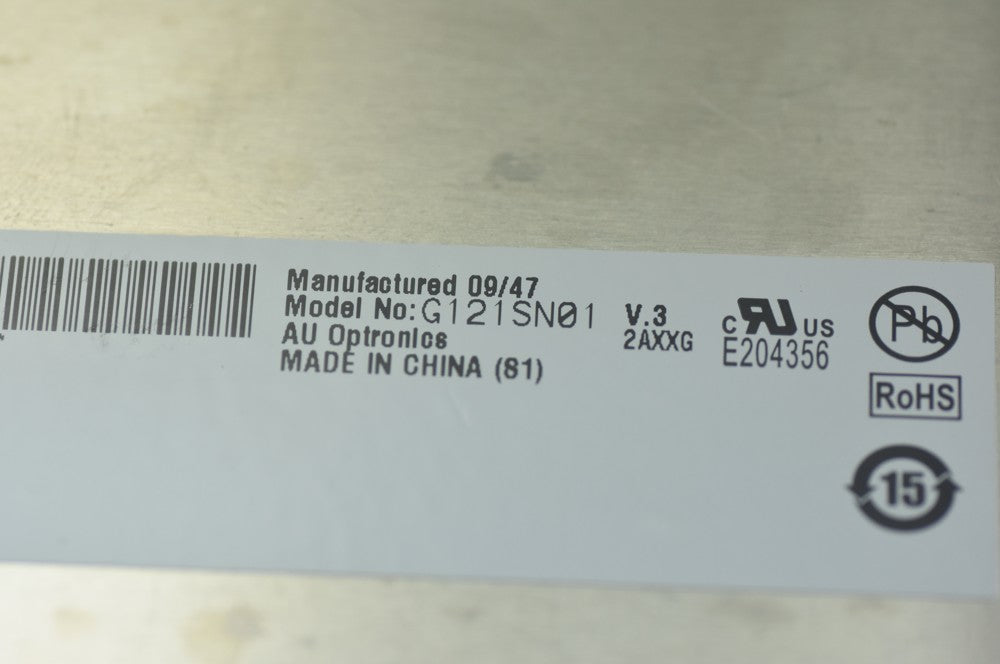

Panel model: G121SN01 V3
Panel type: a-Si TFT-LCD
Panel size:12.1"
Resolution: 800*600
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 400cd/㎡(Typ.)
Contrast: 600:1 (Typ.)
Display Color: 262K/16.2M  (6-bit / 6-bit + FRC)
Response Time: 10/25 (Typ.)(Tr/Td)
Visual Angle: 80/80/50/60 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Lamp Type: 2pcs CCFL
Signal Type: LVDS(1ch, 6/8-bit)
Panel voltage: 3.3V (Typ.)(VDD)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
